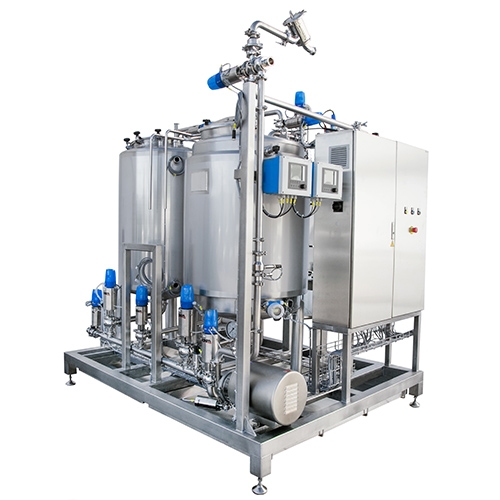

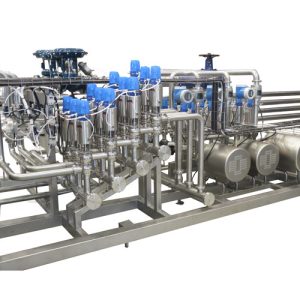

INOXPA CIP PH Skid Mounted Units

Automated CIP/SIP units are custom-selected systems designed to ensure controlled cleaning and/or sterilization, optimizing efficiency without the need to disassemble process plants.

Design & Features

• • Portable CIP Design:
  • Two 250L AISI 316 jacketed tanks with conical bottoms and electric heaters.
  • Peristaltic, piston, or membrane pumps for dosing concentrates.
  • 4kW Hyginox SE impulse pump.
  • AISI 316 collectors with pneumatic butterfly valves and C-TOP.
  • AISI 304 frame with wheels.
  • Return filter.
  • Temperature control in tanks and conductivity control in return line.
  • Level control in tanks.
  • Flow control in return line.
  • Pressure gauge at pump impulse.
  • 6″ touch screen control with Siemens PLC system.
  • 5 programs: preparation, short tank cleaning, short line cleaning, long tank cleaning, long line cleaning. Manual valve activation and plant state display. Parameter change.
  • Tested and verified in our test house.

Materials

• Parts in contact with the media: AISI 316L
• Other parts: AISI 304
• Insulation: rock wool
• Gaskets (valves, pumps, connections): EPDM according to FDA

Option

• Recirculation inside the tanks by means of a pump.
• Additional tank for disinfectant or inline dosing.
• Handshakes between the CIP control panel and other control systems of the plant.
• Valves without feed back.
• Use of double seat or single seat valves instead of the butterfly valves.
• Tubular heat exchanger.
• Other tank configurations (2 simultaneous lines, bigger volumes…).
• Flow control.
• Logging of the operating data.
• Fixed plants due to size.
