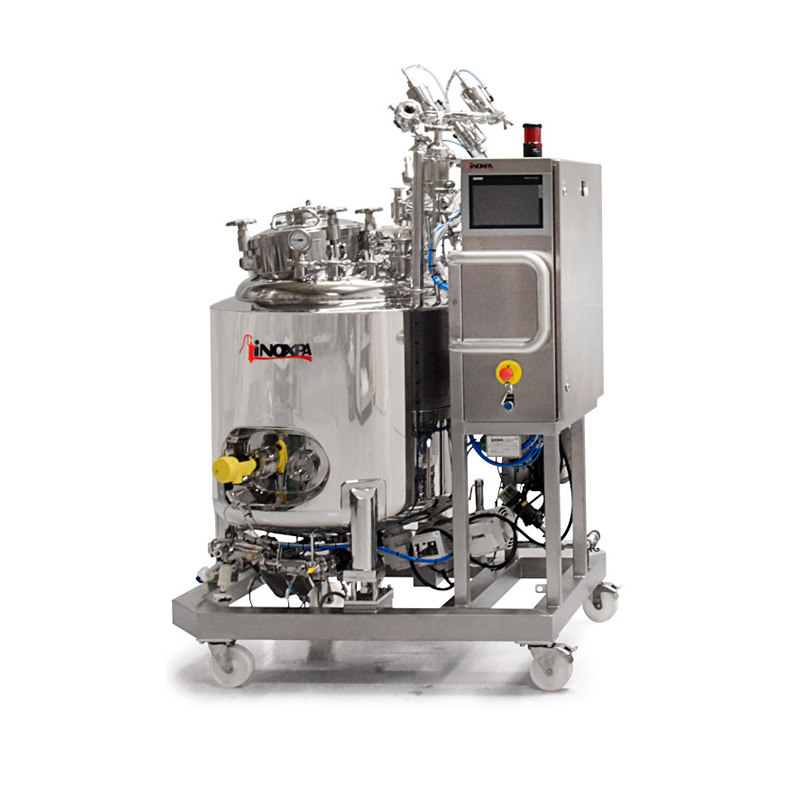

INOXPA Bioreactor Fermenter

The microbial fermentation is the most applied method in biotechnology, and nowadays it is distinguished by innumerable applications. An example of this is the industrial scale production of erythromycin, antibiotic obtained from Saccharopolyspora erythraea under aerobic conditions. Pharmaceutical/Cosmetic Industries

Specification

• Design Standard: ASME BPE
• Structure: Skid-mounted
• Tank: Jacketed and insulated
• Design: CIP/SIP
• Height/Diameter Ratio: 3:1, 2:1
• Automated control system (PLC): Agitation speed, Oxygen level, Temperature, Pressure regulation in exhaust pipe, Addition of nutrients, Product harvest, Sterilization of the nutrient medium, Steam sterilization of the fermenter
• Vertical agitator with mechanical seal and motor gear drive

Materials

• Parts in contact with the media: St.St.S 316L
• Single mechanical seal (dry running)
• Sterile sampling system

Options

• Qualification of all fermenters with IQ/OQ documentation
• Magnetic agitator
• Double mechanical seal
