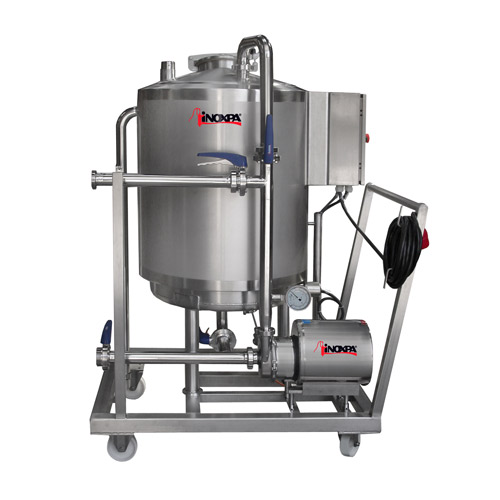

INOXPA CIP Manual Mobile System

A manually operated mobile CIP system to help to clean plants, eliminate impurities, and reduce bacteria levels. Clean plants, eliminate impurities, and reduce bacteria levels.

Design & Features

• The system includes the following elements:
• 1 insulated 300L tank for preparing the cleaning solution.
• Electrical resistance heating with temperature regulation fitted in the tank.
• Constant level in the tank using a pressure switch and a control panel display.
• Collectors with manually operated butterfly valves.
• Base frame with wheels.
• Stainless steel electric panel.
• Tested and verified in our installations.

Materials

• Tank: AISI 316L (1.4404)
• Piping in contact with product: AISI 316L (1.4404)
• Base frame and other steel parts: AISI 304 (1.4301)
• Pump: Estampinox EFI 3, 4 kW
• Mechanical Seal:
• Rotary part: Ceramic (Cer)
• Stationary part: Carbon (C)
• Gaskets: EPDM
• Tank insulation: Mineral Wool

Option

• 300 L AISI 304 tank for water recovery.
• In-line filter with a check valve and tubular sight glass in the return line.
• Detergent concentration dosing pump with a conductivity meter.
• Flow detector in the return line.
• CIP return pump ASPIR A-80, 3 kW.
• Manual flow rate control.
• Pressure gauge at the pump outlet.
