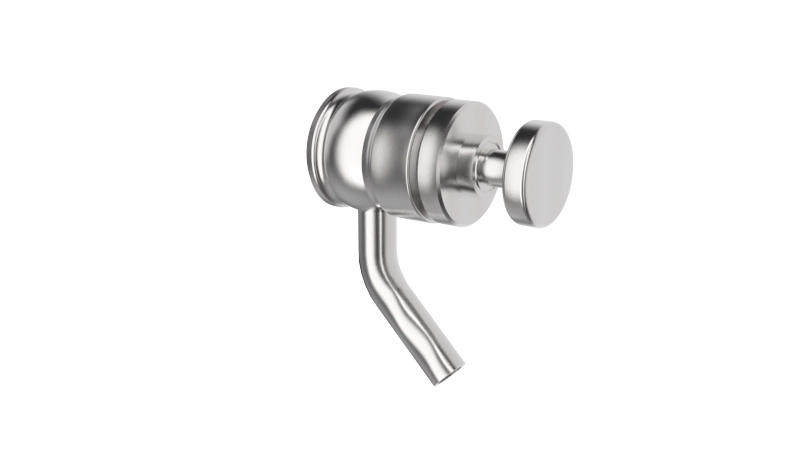

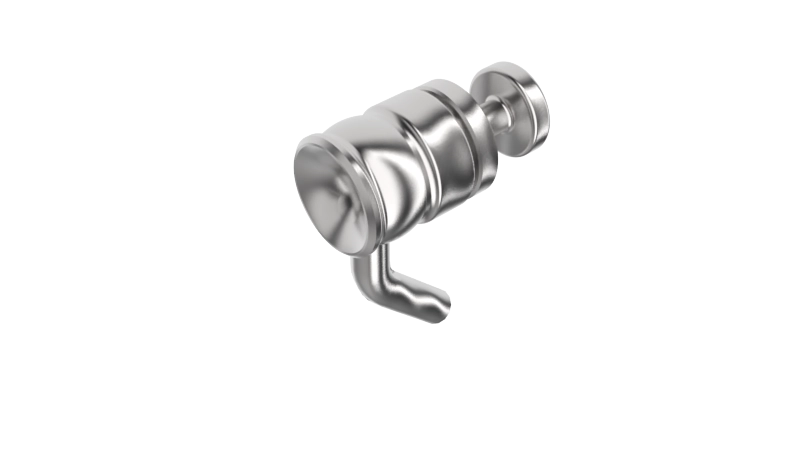

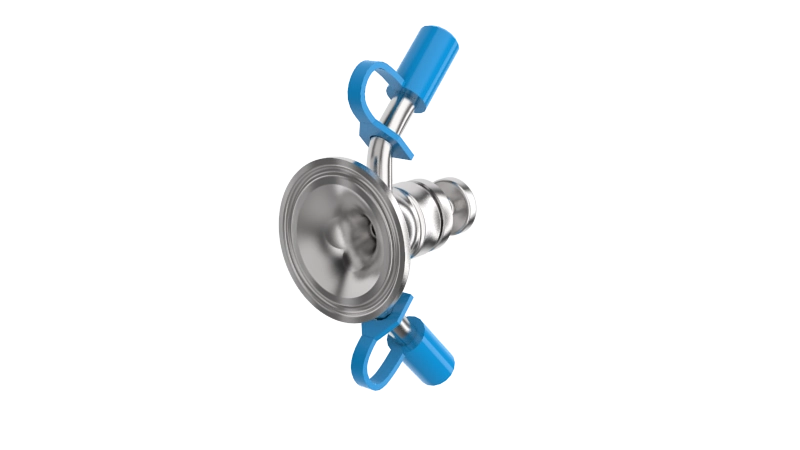

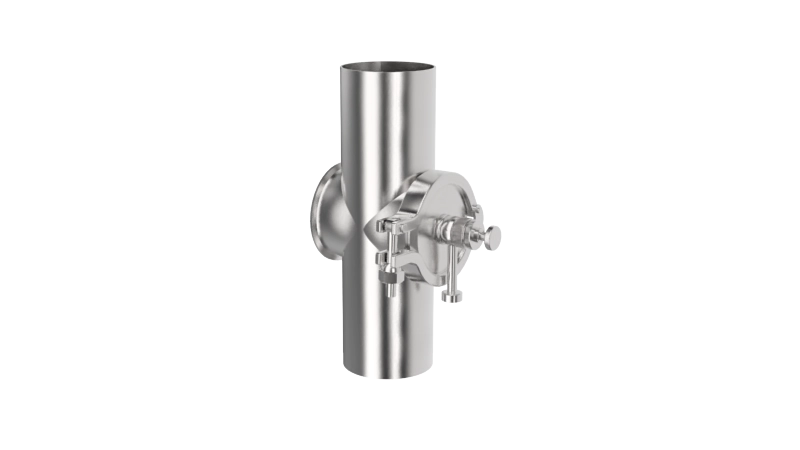

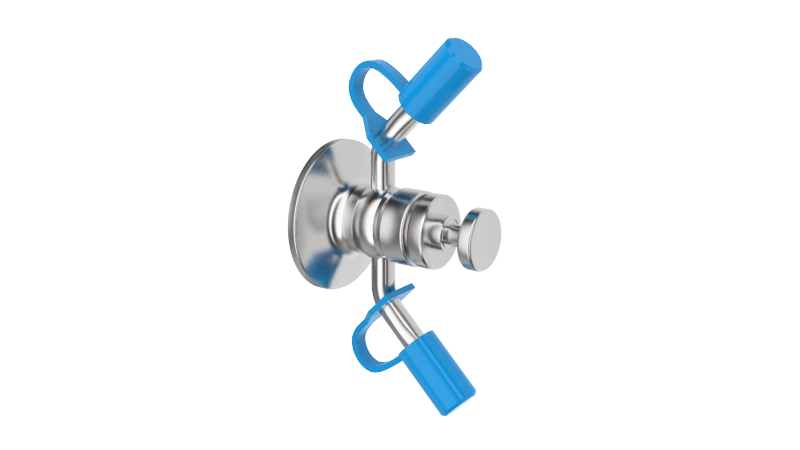

SERVINOX PEMS Valve

The PEMS sampling valve is used to take a sample of clear or low viscosity liquid from a process line or tank in order to carry out quality and/or bacterial controls. Sampling on the tank or transfer line of a clear or low viscosity liquid (non sticky, non sugary and non solidifying) Equipment especially suited to sampling of products subject to quality and/or bacterial controls

Specification

• Hygienic design with flared body
• Low acquisition and usage cost
• Modular opening
• Easy to use & maintenance

Materials

• Parts in contact with the product: 1.4404 (316L) stainless steel
• Other parts: 1.4307 (304L) or 1.4404 (316L) stainless steel
• Sealing: VMQ membrane (Silicone)

Options

• Additional intake for passage of CIP liquid
• VMQ (Silicone) or stainless steel cap(s)
• Other membranes: EPDM (Ethylene Propylene Diene Monomer), NBR (Nitrile rubber), FKM (Fluorocarbon rubber, eq. Viton®), FFKM (Perfluoroelastomer, eq. Kalrez®)
• Membrane USP Class VI compliant
• Customised equipment: please contact us
