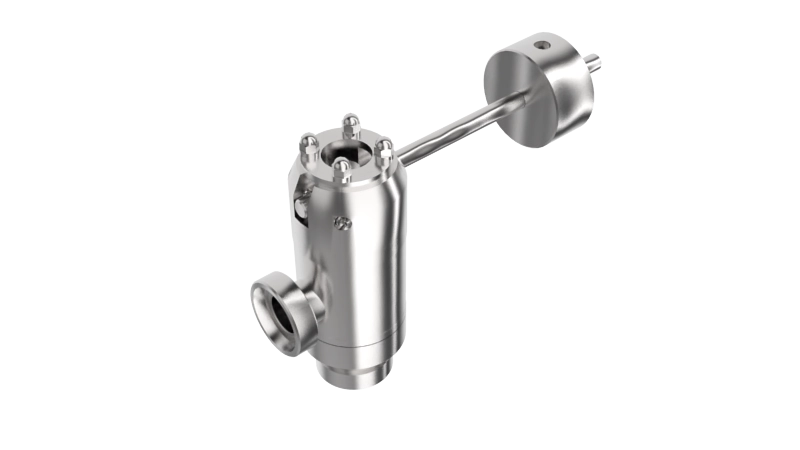

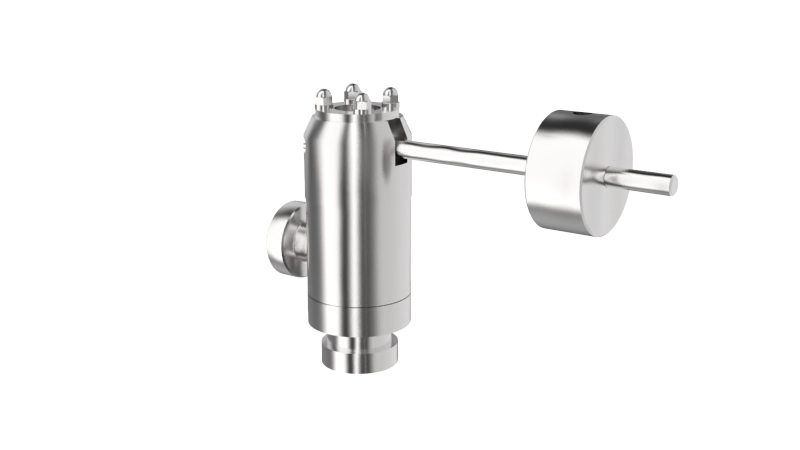

SERVINOX HSV-A Valve

The valves in the BOT range are PED certified security equipment intended to protect tanks containing group 2 gases against excess pressures (service pressure above 0.5 bar). The valve blow-off can be collected. Manufacture and storage of food and non-food products in a controlled atmosphere (dairy products, beverages, waters, creams and other cosmetic products, fine chemicals, etc.) Tanks subject to PED compliance where the service pressure is more than 0.5 bar Exclusively designed to transport gases

Specification

• Fully autonomous (no external control required for its operation)
• Calibration by counterweight, ensuring excellent long-lasting reliability
• Cost-effective maintenance, with no impact on the calibration

Materials

• Parts in contact with the product: 1.4404 (316L) stainless steel
• Other parts: Stainless steel 1.4301 (304L) and nickel-plated brass
• Sealing: VMQ (Silicone) or FKM seals (Fluorocarbon rubber, eq. Viton®)

Options

• Specific surface state on request (inside and/or outside)
• Arnite® ball (service temperatures below 80 °C)
• Loosening cylinder to allow the passage of CIP liquid inside the valve (not in operation)
• Forced opening detection by loosening cylinder
• Blow-off collection
• Other gaskets (specific service conditions): EPDM (Ethylene-Propylene-Diene Monomer) (service temperatures below 120°C)
