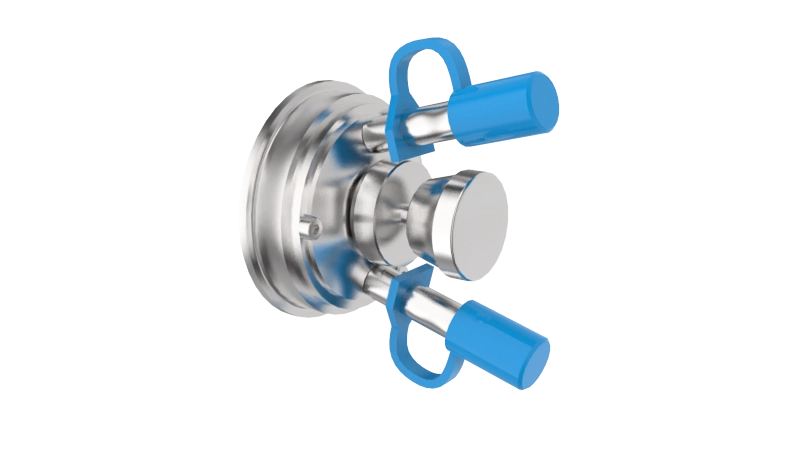

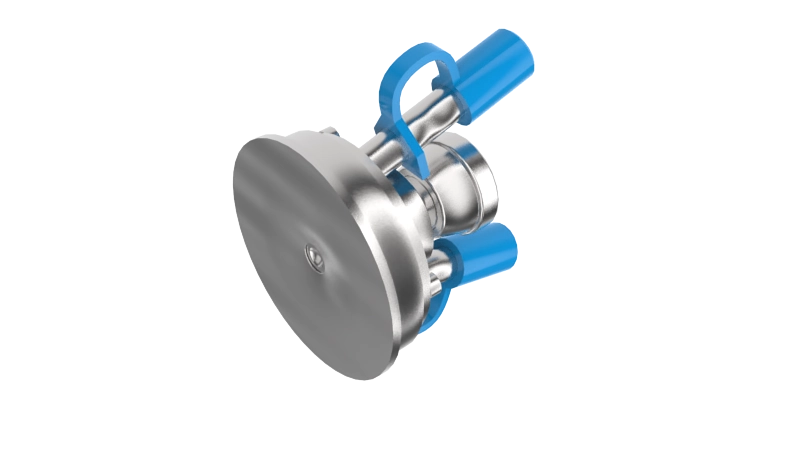

SERVINOX PEMA Valve

The PEMA sampling valve is used to take a sample of clear or low viscosity liquid from a tank in order to carry out quality and/or bacterial controls. Sampling on tank of a clear or low viscosity liquid (manual version) Sampling on tank of a sticky, sugary, low solidifying, low viscosity or clear liquid (automatic version) Equipment especially suited to sampling of products subject to quality and/or bacterial controls

Specification

• Hygienic design with totally flared body
• Easy to use and easy maintenance
• Sterilisation by SIP/CIP circulation

Materials

• Parts in contact with the product: 1.4404 (316L) stainless steel
• Other parts: 1.4301 (304L) stainless steel
• Sealing: VMQ membrane (Silicone)

Options

• Tank mounting by flange to weld
• Automatic version
• Automatic version «ATEX 94/9/EC zones 1 & 2, gas and dust» certified
• Valve without CIP connection if flame sterilisation
• Stainless steel caps on outlets with threaded nozzles
• Other membranes: EPDM (Ethylene Propylene Diene Monomer), NBR (Nitrile rubber), FKM (Fluorocarbon rubber, eq. Viton®), FFKM (eq. Kalrez®)
• Membrane USP Class VI compliant
