INOXPA ME 1100 Vertical High Shear Mixer
The ME 1100 series of the high shear vertical mixers present a solution for the processes of dispersion, emulsifying, homogenization and disintegration of solids
The ME 1100 series of high shear vertical mixers provides an innovative and efficient solution for critical processes such as dispersion, emulsification, homogenization, and the disintegration of solids in a diverse range of products. Designed to meet the specific needs of the food-processing, cosmetics, pharmaceutical, and fine chemical industries, these mixers offer unmatched versatility and performance in handling both simple and complex mixtures. Whether it’s creating stable emulsions, reducing particle size, or ensuring uniform blending of ingredients, the ME 1100 series excels in delivering consistent and reliable results.
These mixers are ideal for processes conducted under atmospheric pressure and can work effectively with products of varying viscosities, from low-viscosity liquids to more challenging, high-viscosity materials. In applications involving thicker, more viscous media, the ME 1100 mixers are highly recommended for use in conjunction with anchor-type agitators. This combination ensures that even the most difficult-to-mix products are efficiently handled, promoting optimal flow and preventing the formation of dead zones or product buildup. The high shear capabilities of these mixers also enhance the uniformity and stability of the final product, whether in food applications like sauces and creams, cosmetic lotions, or pharmaceutical formulations.
In addition to their superior performance, the ME 1100 series mixers are designed with ease of operation and maintenance in mind, ensuring that they can seamlessly integrate into existing production lines. Their robust construction guarantees durability and long-term use, even in demanding production environments. The versatility, reliability, and precision offered by the ME 1100 series make them an indispensable tool for industries where product quality and process efficiency are critical.
- High shear capability, reducing particle size to less than 100 micron
- V-ring design

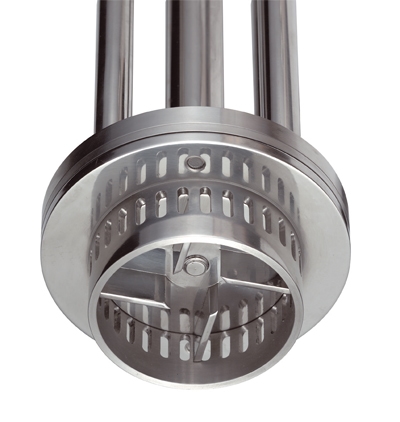

- Slotted head (standard)
- Possibility to replace stator and bushing without disassembling mixer
- Various types of interchangeable heads
- Motors: IEC B5, IP55, F-class insulation
Materials
- Parts in contact with product: AISI316L
- Guide bushing: PTFE
- V-ring: NBR
Options
- DIN2632-PN10 flange or rectangular flange for the assembly on a tank.
- Circulation propeller.
- Downthrust propeller.
- Peak friction bushing and ceramic lined shaft for abrasive media.

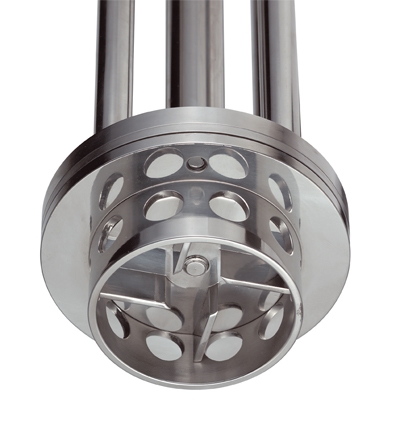

- Disintegrating head.

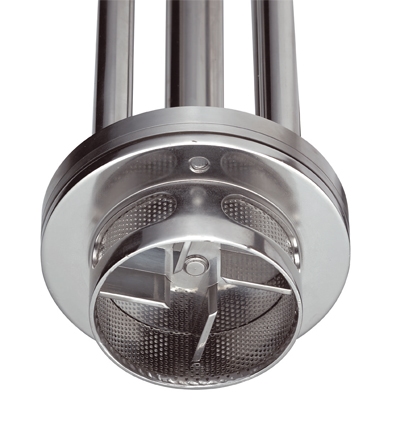

- Fine screen head.
- Intermediate flange for long mixers.
- SLIM system.
- Upper suction head.
- Motor shroud.
- Other motor protections.
