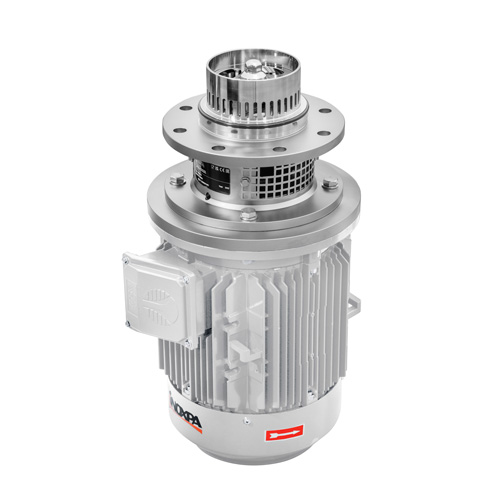

INOXPA ME 6100 In Line High Shear Mixer (Tank Bottom)
The ME-6100 series of the high shear bottom of the tank mixers present a highly hygienic solution for the processes of dispersion, emulsifying, homogenisation and disintegration of solids.
The ME-6100 series of high shear bottom-of-the-tank mixers offer a highly hygienic and efficient solution for critical processes such as dispersion, emulsification, homogenization, and the disintegration of solids in industries where precision and cleanliness are paramount. Specifically designed for the food-processing, cosmetics, pharmaceutical, and fine chemistry sectors, these mixers ensure that even the most complex blending and mixing tasks are carried out with the utmost efficiency and hygiene. The hygienic design of the ME-6100 mixers helps maintain strict compliance with regulatory standards, reducing the risk of contamination and ensuring product purity, which is essential for maintaining product quality in sensitive applications.
What sets the ME-6100 series apart is its versatility, as these mixers can be used in both open or closed tanks, whether under atmospheric pressure or in environments requiring pressure or vacuum conditions. This adaptability makes them suitable for a wide range of production processes, allowing manufacturers to integrate them seamlessly into various operational setups. From the preparation of emulsions in cosmetics to the precise blending of pharmaceuticals and the homogenization of viscous food products, the ME-6100 mixers handle a wide range of media with ease.
Designed specifically for handling highly viscous media, the ME-6100 mixers are intended to work in conjunction with anchor-type agitators. This combination ensures optimal mixing by preventing the formation of stagnant zones and ensuring thorough product blending, even in thicker materials. The anchor agitators help maintain product flow and prevent buildup on the tank walls, enhancing the overall efficiency of the mixing process. Whether it’s mixing creams, pastes, or other high-viscosity products, these mixers provide the power and precision needed to achieve a consistent and homogenous final product.
In addition to their excellent performance, the ME-6100 series mixers are engineered for long-lasting durability and ease of maintenance, reducing operational downtime and minimizing the need for frequent repairs. This makes them a cost-effective and reliable choice for industries that demand both high productivity and strict hygiene standards.
- High shear capability for particle size reduction to less than 100 microns.
- Access to mechanical seal from inside the tank.
- Single sanitary mechanical seal.
- Stator geometrically higher than rotor promotes circulation.
- Motors: IEC B5, IP 55, F-class insulation.
Materials
- Parts in contact with the product: AISI 316L.
- Other stainless steel parts: AISI 304.
- Mechanical seal: C / SiC / EPDM.
- Gaskets: EPDM.
Options
- Double mechanical seal.
- Flushed mechanical seal.
- Disintegrating stator.
- Fine screen stator.
- Bare shaft construction for big size models and transmission by pulleys and belts.
- Ra ≤ 0.4 μm surface finish for pharmaceutical applications.
- Other motor protections.
