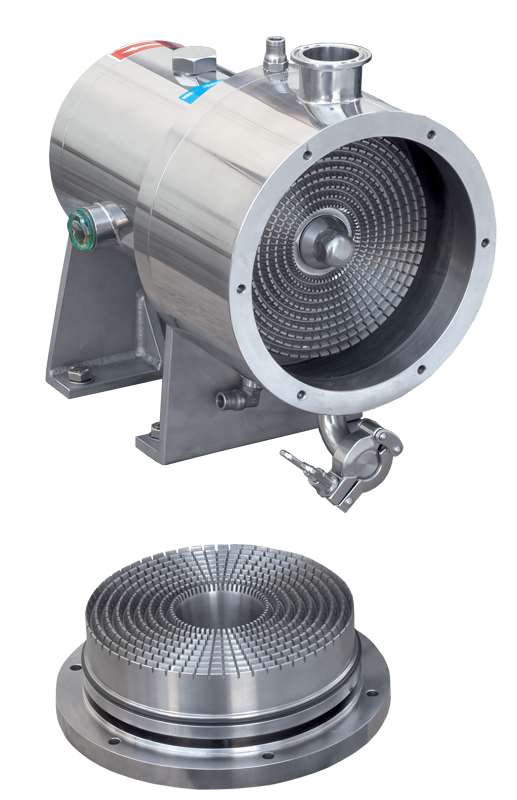

INOXPA 8100X Multitooth Mixer
The ME-6100 series of the high shear bottom of the tank mixers present a highly hygienic solution for the processes of dispersion, emulsifying, homogenisation and disintegration of solids.
The 8100X series multitooth mixers are specifically designed for applications requiring high shear forces to achieve thorough and consistent emulsification. These mixers are ideal for industries where high-quality emulsions are critical, such as in food processing, cosmetics, pharmaceuticals, and veterinary products. Traditionally, mills and homogenizers have been the go-to equipment for producing high-quality emulsions, but the 8100X series offers a more cost-effective and hygienic solution without compromising on performance. By leveraging advanced high shear technology, these mixers are capable of delivering results comparable to those of more expensive and complex machinery, providing a superior alternative at a lower investment.
Specification
- High shear capability with particle size reduction to less than 10 micron
- Adjustable tolerances between the rotor and stator
- Sealing system: sanitary single cooled mechanical seal
- CIP compatible design for easy cleaning

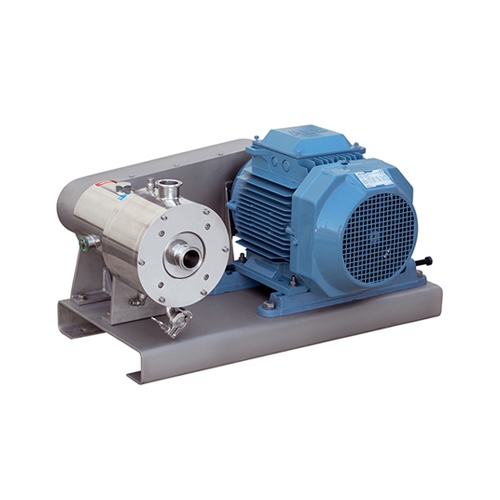

- Assembly with pulleys and belts.
- Clamp drain port for convenient drainage
- Motors: IEC B3, IP 55, F class insulation, 3000 rpm
Materials
- Parts in contact with the media: AISI 316L
- Other steel parts: AISI 304
- Seal: C / SiC
- Gaskets: EPDM
Options
- Double mechanical seal option available
- Customizable mechanical seal and gasket materials
- Motors with alternative protections
- Speed adjustment options: frequency converter or change of pulley ratios
- Availability of control panel for enhanced operation control
