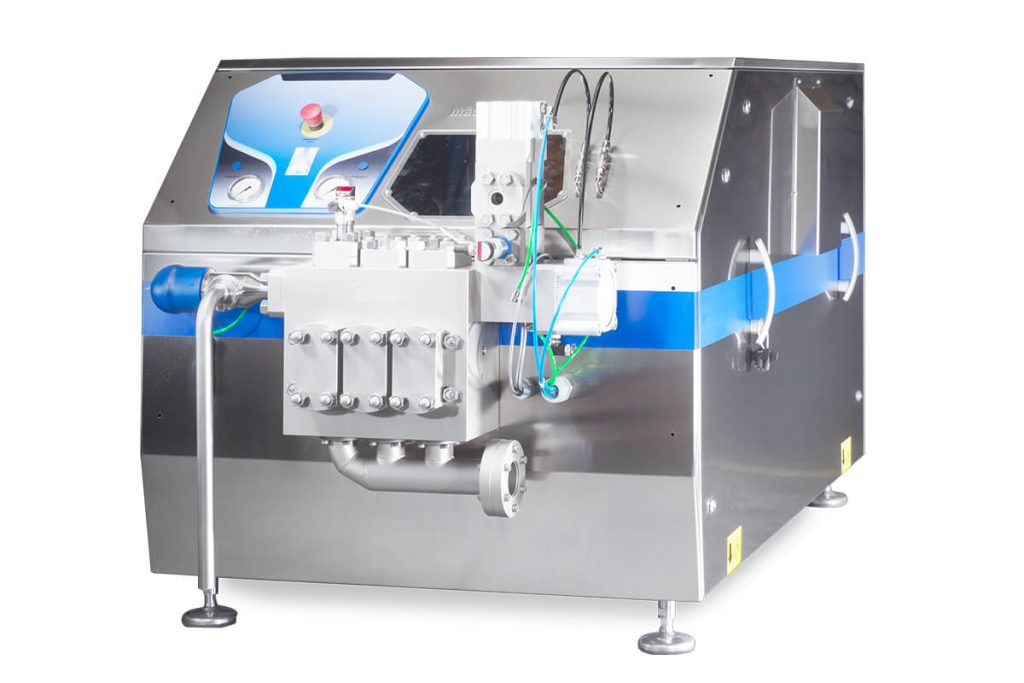

BERTOLI Raffaello HA32 Homogenizer / PA32 Pump

The Bertoli Raffaello Series – HA32 Homogenizers are designed with a hygienic construction in compliance with MOCA standards, ensuring reliable performance in demanding applications. The plungers are made of integral ceramic for enhanced durability, while the poppet valves are specifically designed to handle viscous and abrasive products. The liquid end allows for easy and user-friendly maintenance, and the transmission system is optimized for low maintenance costs. Featuring easy-to-open panels, the homogenizer simplifies servicing. It operates quietly, uses minimal water, and is engineered with reduced complexity, making it an efficient and practical solution for various applications.

Specification

• • Forged block made of Duplex, SAF2205, 3 Plungers made of AISI630L
  • Direct transmission system with trapezoidal belts and pulleys
  • Homogenizing group with hydro-pneumatic adjustment of the pressure for a great stability and homogenizing valvesin stellite™
  • Flat valve seat and poppet/ball valves type made of stellite 20™
  • Digital pressure transmitter, 4-20 mA, with ceramic membrane
  • Overpressure valve, flow switch alarm
  • Splash lubrication system, die cast alluminium crankcase, nitrurized crankshaft
  • Terminal box and control panel for local/remote control
  • Easy opening panels

Materials

• Parts in contact with the media: St.St.S 316L
• Single mechanical seal (dry running)
• Sterile sampling system

Options

• Second stage homogenizing group
• Vibration and temperature monitoring and alarm
• Forged multi-block made of Super Duplex, SAF2507
• Pumping plungers availability: HVOF chromium carbide jet coat treatment
• Aseptic execution
• Sterile water generator by means of condensed steam generator
• Patent pending sterile water generator by means of microfiltration
• Electric power board for fixed or variable capacity
• Remote control by 4-20 mA signal
• Fully automatic pressure control by means of PLC
• Design suitable with 3A, EHEDG, or PHARMA standards
• Low roughness and electropolished wetted parts
• Certification manual for cGMP
• Inlet and outlet connections: DIN 11851, Tri Clamp, SMS
• High pressure outlet
• Options upon request
• Standard or Sharp Edge Homogenizing valve with different geometries
• Materials availability: Tungsten carbide, Zirconia Oxide
• Explosion proof design
• Seat valve made of Tungsten carbide
• Soundproof design
