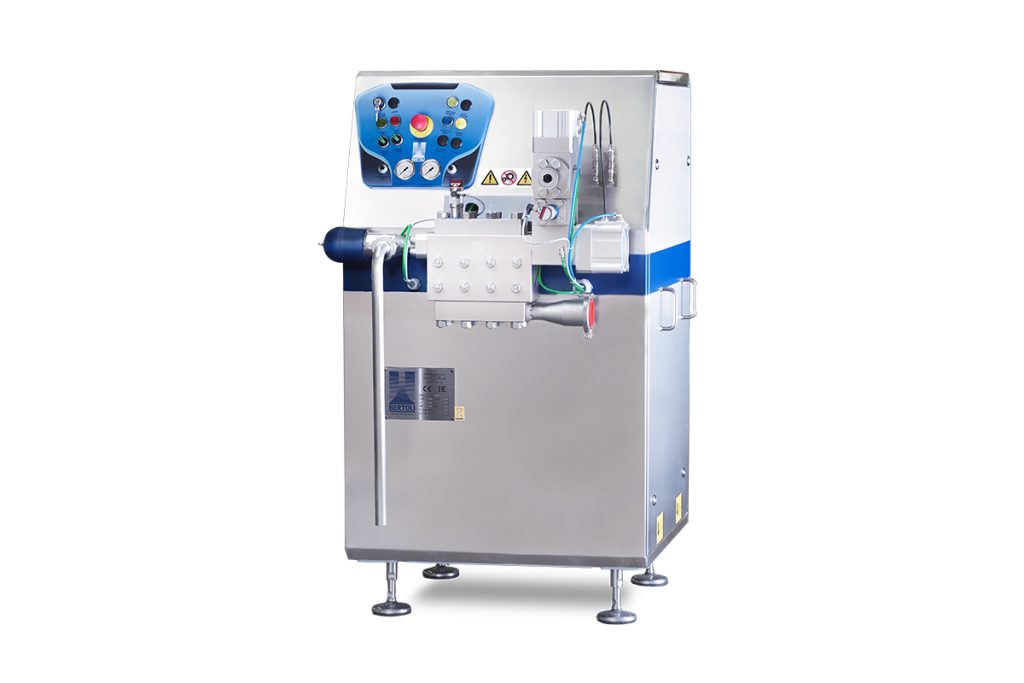

BERTOLI Michelangelo HA30 Homogenizer / PA30 Pump

The Bertoli Michelangelo Series – HA30 Homogenizers are designed with a hygienic construction that complies with MOCA standards, ensuring reliable performance in hygienic applications. The liquid end is built for easy maintenance, simplifying routine upkeep. Its transmission system is engineered to minimize maintenance costs, offering a practical and cost-effective solution. The homogenizer also features easy-to-open panels for quick access and is designed to operate quietly, contributing to a more comfortable working environment.

Specification

• Forged block made of Duplex, SAF2205, 3 Plungers made of AISI630L
• Direct transmission system with trapezoidal belts and pulleys
• Homogenizing group with hydro-pneumatic adjustment of the pressure for a great stability and homogenizing valvesin stellite™
• Flat valve seat and poppet/ball valves type made of stellite 20™
• Digital pressure transmitter, 4-20 mA, with ceramic membrane
• Overpressure valve, flow switch alarm
• Splash lubrication system, die cast alluminium crankcase, nitrurized crankshaft
• Terminal box and control panel for local/remote control
• Easy opening panels

Materials

• Parts in contact with the media: St.St.S 316L
• Single mechanical seal (dry running)
• Sterile sampling system

Options

• Second Stage Homogenizing Group:
  • Forged multi-block made of Super Duplex, SAF2507
• Aseptic Execution:
  • Sterile water generator by condensed steam
• Patent-pending sterile water generator by microfiltration
• Design Suitability:
  • Compliant with 3A, EHEDG, or PHARMA standards
  • Low roughness and electropolished wetted parts.
  • Standard or Sharp Edge
• Homogenizing Valve:
  • Available with different geometries and materials such as Tungsten carbide and Zirconia Oxide
  • Vibration and temperature monitoring with alarm
  • Seat valve made of Tungsten carbide
• Pumping Plungers Availability:
  • HVOF chromium carbide jet coat treatment
  • AL2O3, Integral ceramics
• Electric Power Board:
  • Available for Fixed or Variable capacity
• Remote Control via 4-20 mA signal
• Fully Automatic pressure control by PLC
• Explosion proof design
• Soundproof design
