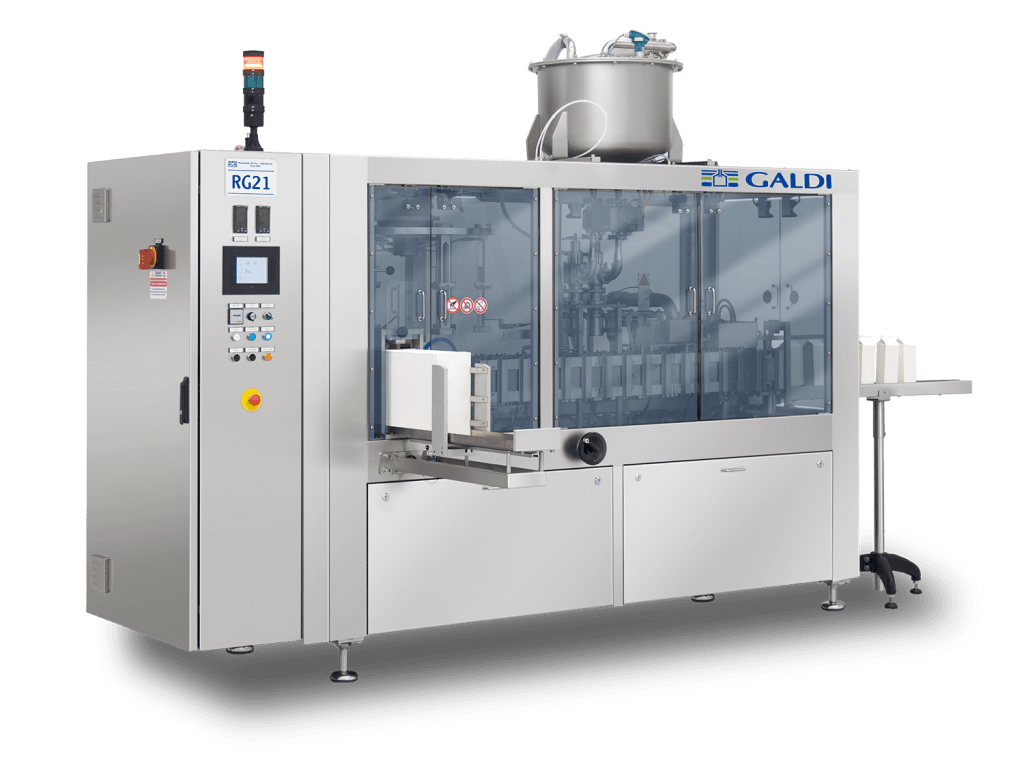

GALDI RG21 Series

The RG21 is a low-capacity yet highly competitive packaging machine, designed as an ideal entry-level solution for businesses seeking maximum efficiency while keeping investment costs to a minimum. Tailored for small-scale operations or businesses just starting to invest in automated packaging systems, the RG21 offers an excellent balance between performance and affordability. Despite its compact size and low capacity, this machine is engineered to deliver reliable and consistent results, making it a smart choice for companies aiming to optimize their packaging processes without incurring high upfront costs.

With its streamlined design, the RG21 minimizes operational complexities, allowing for easy integration into production lines and straightforward maintenance. Its efficiency ensures that resources such as time, labor, and materials are used optimally, helping businesses achieve a high return on investment. Additionally, the machine’s compact footprint makes it suitable for facilities with limited space, ensuring that even small operations can benefit from the advantages of automated packaging. The RG21 is a cost-effective and practical solution for those looking to enhance productivity while maintaining low operational expenses, making it a valuable asset for businesses that prioritize both performance and budget-conscious decisions.

• Design and Feature

  • Flow-Meter Filler with aseptic AGV Valves
  • Filling Valves with Adjustable Stroke
  • Central Automatic Lubricating System
  • Full AISI 304 and 316 Stainless Steel
  • Recirculation Pump for CIP Solution
  • Automatic carton size changeover
  • Spare Parts Kit for First Startup
  • Remote Connection for Technical Support
  • Overpressure Kit for Product Balance Tank
  • Touch screen control panel system

  Technical Feature

  • Speed: Up to 2000 cartons per hour
  • Filler: Flowmeter
  • Length: 3040 mm
  • Width: 1100 mm
  • Height: 1600 mm
  • Compressed Air
  • Flow: 580 nl/min
  • Pressure: 600 kPa
  • Electrical Data
  • Max. Power: 19 KVA
  • Nominal Voltage: 8 KVA
  • Nominal Power: 400 Vac – 50Hz
  • Number of Phases: 3P + N + E
  • Cooling Water
  • Waste Water: 3 l/min @ 16°C – 50/150 kPa
  • Chilled Water: 10 l/min @ 4°C – 50/150 kPa

  Options

  • Ultrasonic Screw Cap Applicator
  • Double Wall Insulated Product Balance Tank
  • Cartons and Caps Disinfection by Hydrogen Peroxide
  • HEPA Filter for Caps Blower
  • Date coder (Hot Printer or Ink-jet on outfeed conveyor)
  • Outfeed Conveyor with Accumulation Table
  • Cooling System for Electrical Cabinet
  • Hot Printing Date Coder 18 printing
  • Integrated Heat Exchanger
  • Independent Refrigerator
