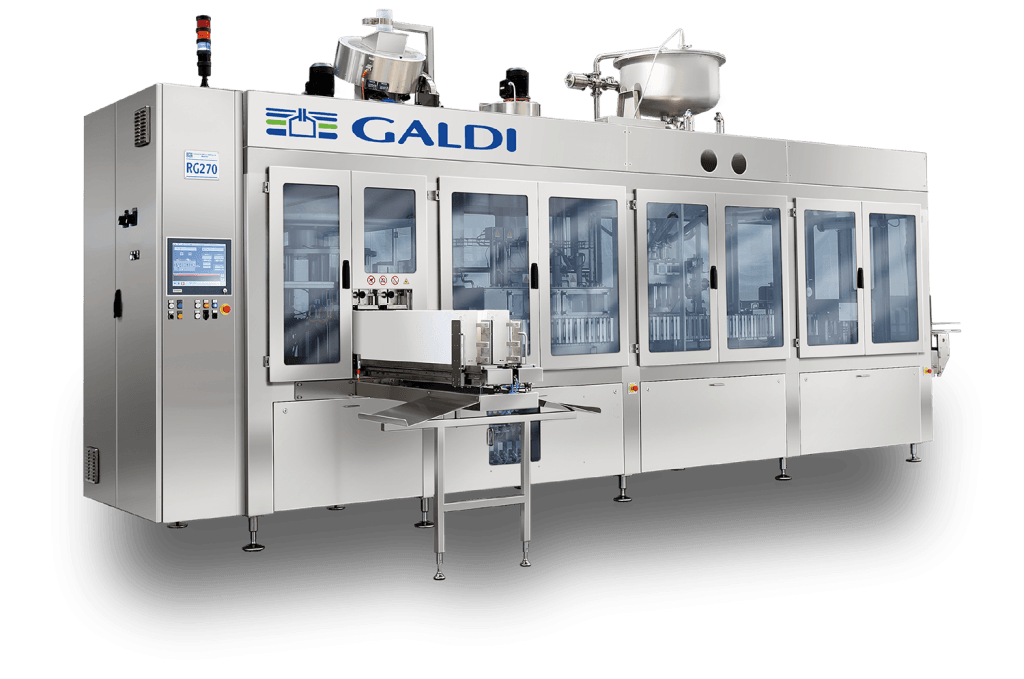

GALDI RG270C Series
Galdi automatic filling machine model RG50 is designed for the inline forming, filling and sealing of Gable Top cartons.
The Galdi automatic filling machine, model RG270, is a highly efficient solution engineered for the inline forming, filling, and sealing of Gable Top cartons. Designed to meet the diverse needs of packaging operations, this machine offers advanced versatility by supporting various types of filling technologies, making it adaptable to different liquid products such as milk, juice, or other beverages. The RG270 ensures precise and consistent performance, optimizing productivity while maintaining the integrity and freshness of the product. Additionally, its user-friendly design allows for easy integration into existing production lines, ensuring smooth and reliable operation across a wide range of applications.
Design and Feature
- Automatic CIP Box Cover
- Waste Cartons Ejection System
- Cooling System for Electrical Cabinet
- Central Automatic Lubricating System
- Electronic Carton Conveyor Safety Clutch
- Modulating System for Product Inlet
- Stainless Steel Mandrels
- and much more…
Technical Feature
- Speed: Up to 7000 cartons/hour
- Filler: Volumetric piston filler + Bottom up
- Length: 6290 mm
- Width: 1500 mm
- Height: 3390 mm
- Compressed Air:
- Flow: 680 nl/min
- Pressure: 600 kPa
- Electrical Data:
- Max. Power: 46 KVA
- Nominal Voltage: 400 Vac – 50Hz
- Nominal Power: 22 KVA
- Phases: 3P + N + E
- Cooling Water:
- Waste Water: 5 l/min @ 16°C – 50/150 kPa
- Chilled Water: 4 l/min @ 4°C – 50/150 kPa
Options
- Ultrasonic Screw Cap Applicator moved by servomotors
- Automatic secondary packaging options
- Ink-jet Date Coder on Outfeed Conveyor
- Lubrification oil collectors
