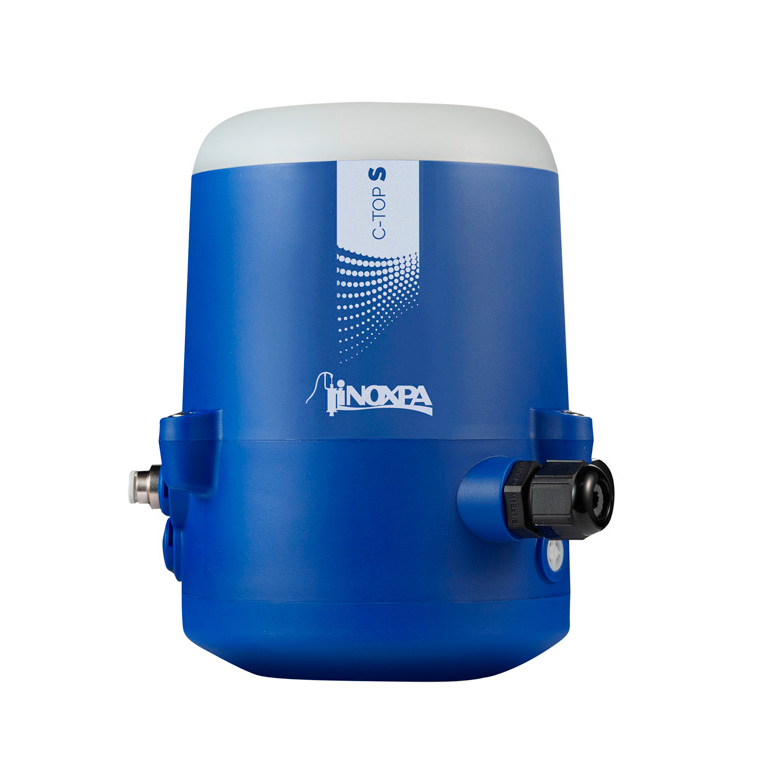

INOXPA Control Unit C-TOP S / C-TOP S AS-I

The C-TOP S control unit can adapt to any INOXPA actuator, and both efficiently and individually automate pneumatically driven process valves. These include: butterfly, ball, diaphragm and single or double seat valves. Butterfly Valve, Ball Valve, Diaphragm Valve, Single/Double seat Valve with single-acting actuator.

Specification

• The C-TOP S installs easily onto the top of the valve’s actuator
• AUTOTUNE mode enables quick and simple configuration
• Line detection using hall sensors

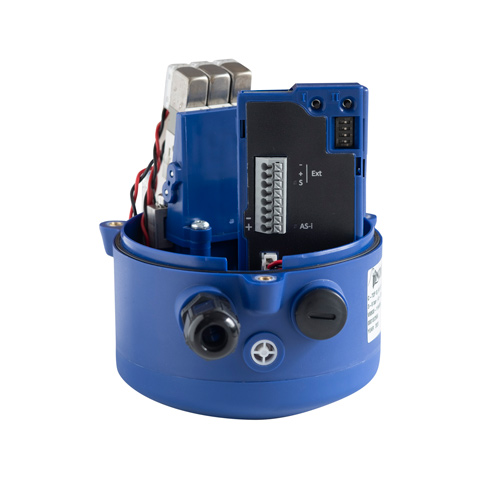

• Use of up to three solenoid valves possible. One solenoid valve is required for single-acting control valves, two for double-acting control valves, and three for mixproof valves
• External sensor connection possible
• 360° view of lights indicating valve status

Materials

• Plastic parts: PA6
• Nuts and bolts: A2
• Gaskets: NBR
• Pneumatic connections: Nickel-plated brass

Option

• Outdoor use: C1 – protected areas
• Storage temperature: -20 to 50 °C
• Ambient temperature: -5 to 50 °C
• Protection rating: IP65, IP67
