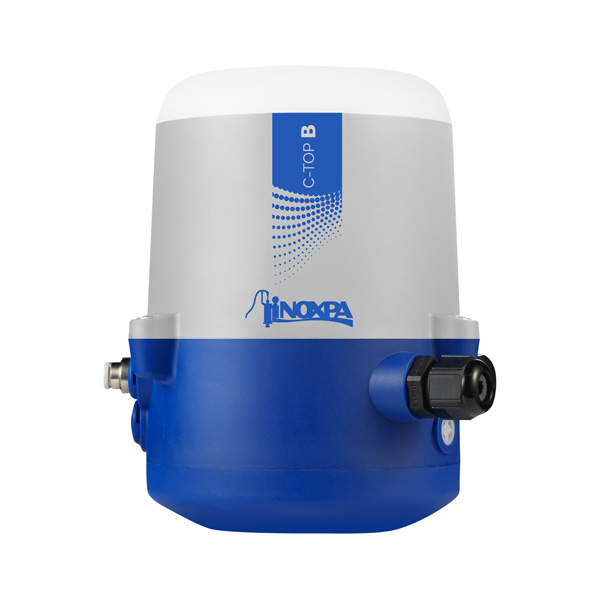

INOXPA Control Unit C-TOP B

he C-TOP B control unit can adapt to any INOXPA actuator and both efficiently and individually automate pneumatically driven process valves. These include butterfly, ball or single or double seat valves with single-acting actuator. Butterfly Valve, Ball Valve, Single/Double seat Valve with single-acting actuator.

Specification

• The C-TOP B installs easily onto the top of the valve’s actuator
• Quick and simple configuration
• Line detection using magnetic Reed type sensors
• 360º vies of lights indicating valve status

Materials

• Plastic parts: PA6
• Nuts and bolts: A2
• Gaskets: NBR
• Pneumatical connections: nickel-plated brass

Options

• Stroke ≤ 70 mm
• Maximum shaft diameter 22 mm
• Adapter shaft diameter 6 mm
• Assembly type screws
• Fluid filtered compressed air, filtration degree 40 μm lubricated or not lubricated
• Measuring principle magnetic Reed type
• Measured quantity position
• Detection range ± 5 mm
• Visual indicators LED
• Outdoor use C1 – protected areas
• Storage temperature -20⁰C to 50⁰C
• Environment temperature -5⁰C to 50⁰C
• Protection rating IP65, IP67
• Compressed air supply (1) screwed adapter G1/8, QS-8 (for a Ø 8 mm pipe)
• Service ports (A1…A3) screwed adapter G1/8, QS-6 (for a Ø 6 mm pipe)
• Exhaust (3) screwed silencer G1/8
• Maximum line length 30 m
• Power consumed with solenoid valve: 1,35 W without solenoid valve: 1 W
