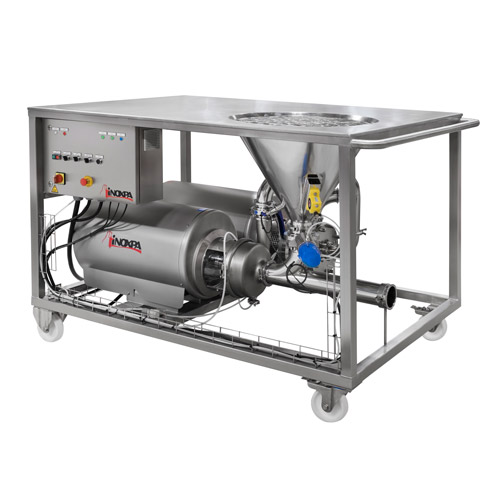

INOXPA MM Table Blender

The table blender is used to dissolve solids / powders in recirculated liquids. Preparation of pharmaceutical syrops or dissolution of pectin in glucose for marmelade production. Reconstitution or stabilization of milk in the production of dairy products Dissolution of sugar for the production of syrup in the beverage industries.

Specification

• Compact unit with centrifugal pump and venturi system
• Horizontal suction and venturi system
• Recirculation for complete mixing
• Easy cleaning and disinfection without disassembly
• Manually actuated butterfly valve for hopper control
• Optional in-line mixer for total dissolution of lumps
• Smooth, easy-to-clean surface for hopper
• Stainless steel control panel with motor protection
• Skid with wheels for mobility and clamp drain port for total drainage

Materials

• Parts in contact with the product: AISI 316L (1.4404)
• Other steel parts: AISI 304 (1.4301)
• Gaskets: EPDM
• Mechanical seal: Rotary part Silicon carbide (SiC), Stationary part Silicon carbide (SiC)

Options

• Double mechanical seal
• Solenoid valve for the seal cooling system
• Gaskets available in FPM or PTFE
• Vibrator for hopper
• Frequency converter for the centrifugal pump
• Pneumatically actuated valve + lower level sensor for solids
• Hygienic upper level sensor for solids
• Control panel for vibrator, level sensors, frequency converter, and automated valve
• Grid for hopper
