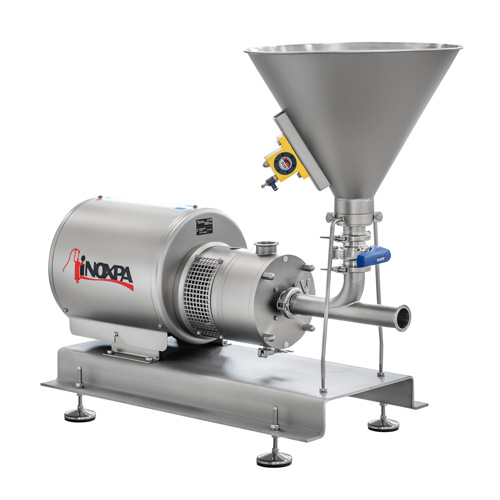

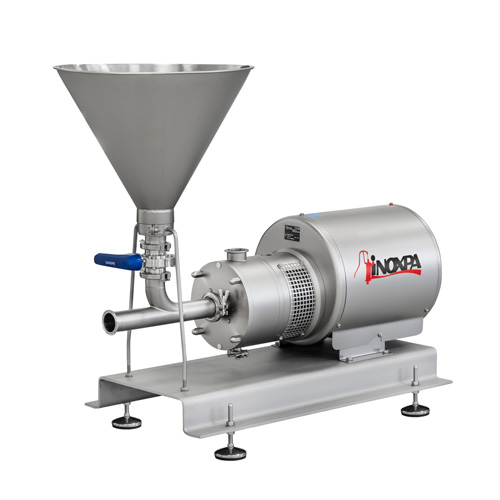

INOXPA Horizontal Mixblender

Mixblend blenders are used to add solids that tend to clump when mixed with liquids. It is ideal for solids such as gums, pectins and other thickening agents. Ideal for solids like gums, pectins, and other thickening agents. products with higher concentrations of gums and thickening agents.

Specification

• Simple and versatile unit for fast and homogeneous mixing of a wide range of solids without any contact with the air
• Hygienic design
• Single mechanical seal Butterfly valve for the hopper
• Cleaning and disinfection without disassembly

Materials

• Parts in contact with the product: AISI 316L
• Other metal parts: AISI 304
• Gaskets: EPDM
• Mechanical seal:
• Rotary part: Silicon carbide (SiC)
• Stationary part: Silicon carbide (SiC)
• Gaskets: EPDM

Options

• Double mechanical seal
• Gaskets in FPM or PTFE
• Drain port
• Vibrator for hopper
• Pneumatically actuated valve + hygienic low level sensor for solids
• Hygienic upper level sensor for solids
• Control panel for the vibrator, level sensors, and automatic valve
• Mounted on a cart with or without control panel
• Grid for the hopper
