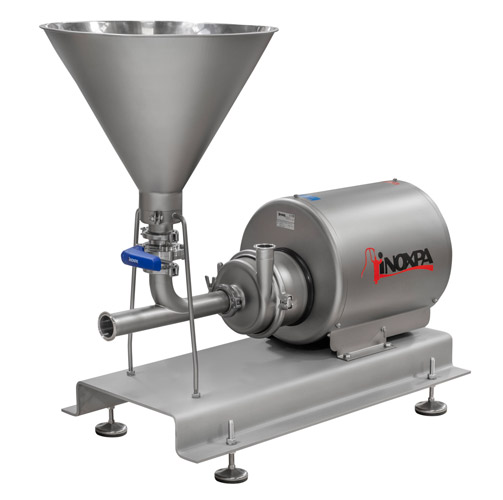

INOXPA Horizontal Blender MH-20 / MH-26

The horizontal blender is used to dissolve solid / powder products into a liquid, recirculated in a tank.

The blender is limited to the suction of small amount of solids as it has no table for bags and the hopper is smaller than that of the table blender.

Design & Features

• Very simple and versatile system for a fast and homogeneous mixing of a wide range of solid products without any contact with the atmosphere.
• Hygienic design.
• Single mechanical seal.
• Cleaning and disinfection without disassemby

Materials

• Parts in contact with the product: AISI 316L.
• Other metal parts: AISI 304.
• Gaskets: EPDM.
• Mechanical Seal:
• Rotary part: Silicon carbide (SiC).
• Stationary part: Silicon carbide (SiC).
• Gaskets: EPDM.

Option

• Double mechanical seal.
• Gaskets: FPM or PTFE.
• Drain port.
• Vibrator for hopper.
• Pneumatically actuated valve + low-level sensor for solids.
• Solids upper-level sensor.
• Control panel for the vibrator, level sensors, and automated valve.
• Grid for hopper.
