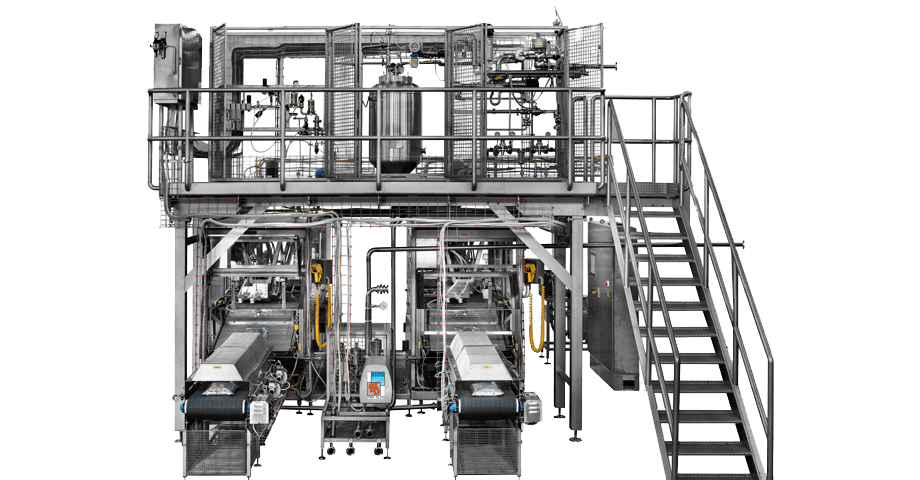

FBR-ELPO N.E.S Aseptic Filler ( BAG IN BOX )
“N.E.S.”(New Extreme Solution) aseptic filler is the result of years of experience in the production of aseptic filling machines for the dairy sector.The filler can be coupled to the entire line for carton formation, transfer, filling and sealing. It is also possible to install an aseptic product feeding tank. For filling 3-5-10-20 liter webbed bags, the operating speed reaches 900 bags/h with the double- headed version.
Juices, purees, fruit and tomato concentrates, concentrates and citrus juices, diced fruit, tomato pulp, pizza sauce, etc.
“N.E.S.”(New Extreme Solution) aseptic filler is the result of years of experience in the production of aseptic filling machines for the dairy sector.The filler can be coupled to the entire line for carton formation, transfer, filling and sealing. It is also possible to install an aseptic product feeding tank. For filling 3-5-10-20 liter webbed bags, the operating speed reaches 900 bags/h with the double- headed version.
Juices, purees, fruit and tomato concentrates, concentrates and citrus juices, diced fruit, tomato pulp, pizza sauce, etc.
Technical Data
- AS-I-30-WEB
- Operating speed: Up to 450 s.p.h.
- Height: 2,600 mm
- Width: 1,300 mm
- Length: 3,700 mm
- Installed power: 8 kW
- Steam consumption: 20 kg/h 6 bar
- Compressed air consumption: 180 Nm³/h 8 bar
- AS-II-30-WEB
- Operating speed: Up to 900 s.p.h.
- Height: 2,600 mm
- Width: 3,800 mm
- Length: 3,700 mm
- Installed power: 15 kW
- Steam consumption: 40 kg/h 6 bar
- Compressed air consumption: 360 Nm³/h 8 bar
