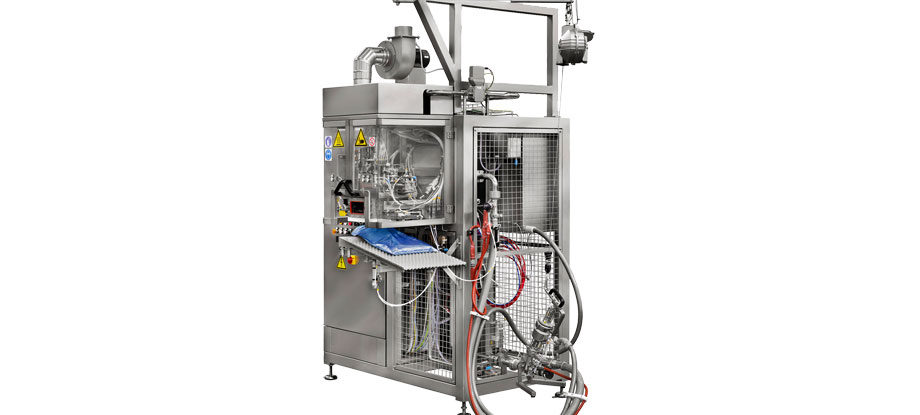

FBR-ELPO Mini WEB Aseptic Filler
The aseptic filler Mod. MINI-WEB is designed for the filling and packaging of a wide range of products, liquid and with pieces, (also low and high acid) by using bags from 3 to 25 liter with manual feeding.
milk, cream, ice-cream basis, natural fruit juices and concentrates, tea, etc.
Description
Specification
Description
The aseptic filler Mod. MINI-WEB is designed for the filling and packaging of a wide range of products, liquid and with pieces, (also low and high acid) by using bags from 3 to 25 liter with manual feeding.
milk, cream, ice-cream basis, natural fruit juices and concentrates, tea, etc.
Specification
Technical Data
- VERSION: AS-I-250/MINI-WEB
- Filling Range:
- Bags: 3, 5, 10, 15, 20, 25 liters
- Drums: 200 liters
- Operating Speed:
- Bags of 10 liters: approx. 80 bags/h (manual feeding)
- Filling Accuracy:
- ± 0.5% of filled volume (min. ±30ml)
- Dimensions:
- Height: 2560 mm
- Width: 1873 mm
- Length: 1652 mm
- Installed Power:
- 2 Kw
- Steam Consumption in Production Cycle:
- 20 Kg/h at 6 bar
- Compressed Air Consumption:
- 30 Nmc/h at 8 bar
