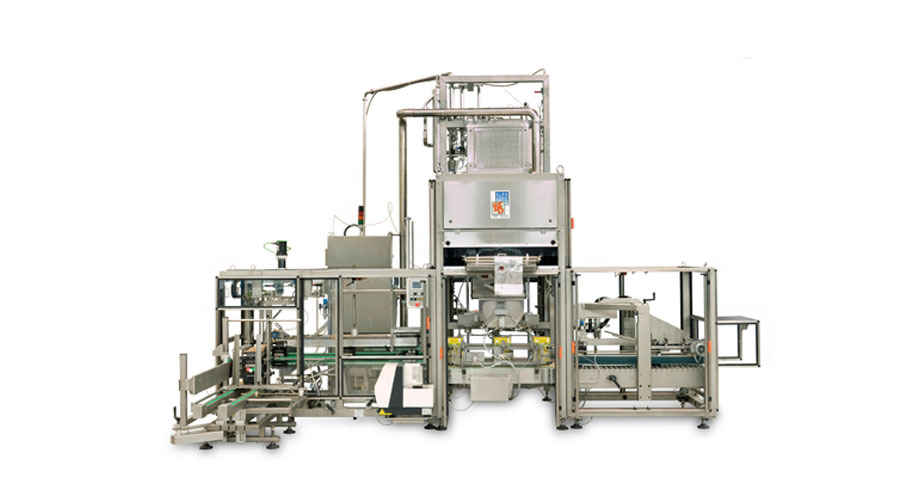

FBR-ELPO N.A.F. Ultra Hygienic Filler ( BAG IN BOX )

FBR ELPO manufactures an ultra-hygienic filling machine named NAF for 1,5-3-5-10-20 liter webbed bags in continuous feed

suitable for products such as ESL milk, wine, oil, water and other liquids and/or semi-thick products which do not need to be aseptically filled.

Technical Data

• • Filling range: Bags of 1.5-20 liters
  • Operating speed (*):
  • 5L bags – up to 1,200 bags/h
  • 10L bags – up to 1,000 bags/h
  • 20L bags – up to 760 bags/h
  • Height: 3,000 mm
  • Width: 1,360 mm
  • Length: 2,520 mm
  • Filling accuracy (*): ±0.5% of filled volume (min. ±30 ml)
  • Product filling temperature: From +5°C up to +45°C

  (*) Data referred to water filling
