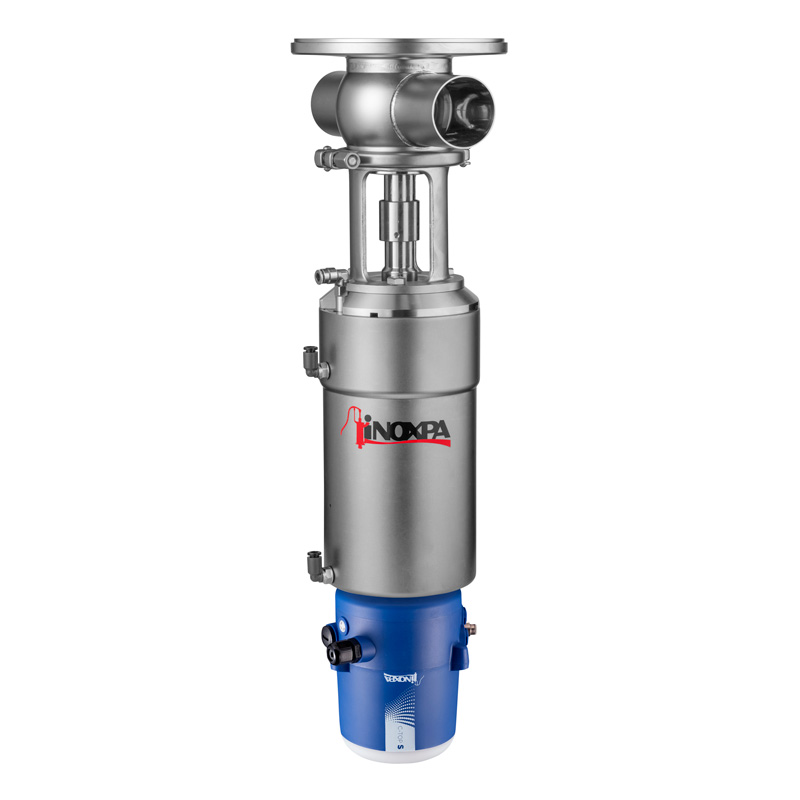

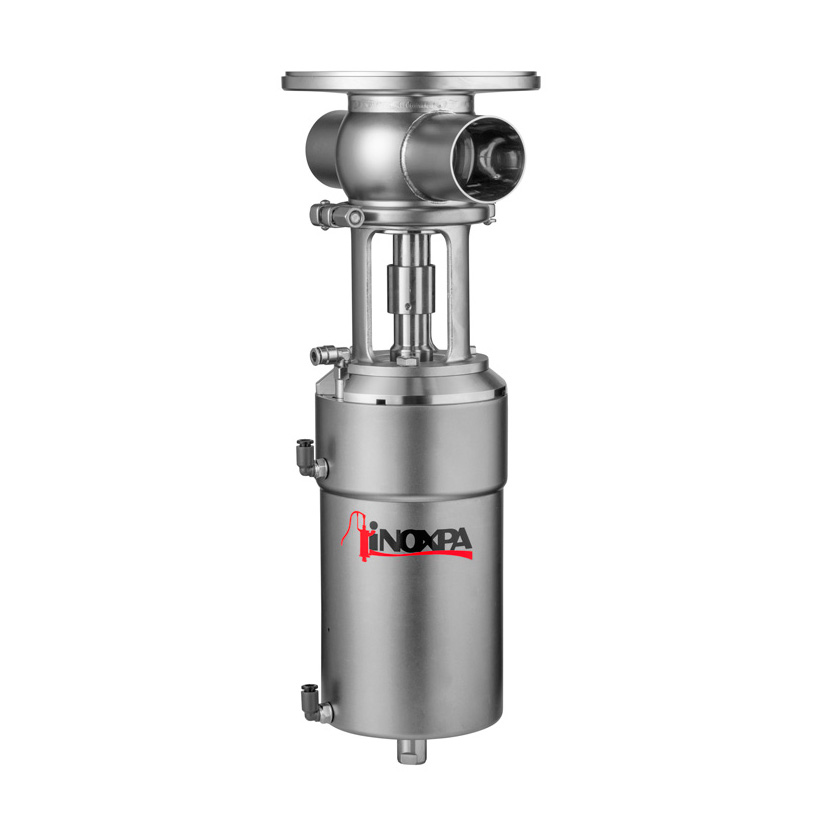

INOXPA INNOVA T Tank Bottom Double Seat Valve

The INNOVA T mixproof valve is a highly advanced double seat pneumatic shut-off valve meticulously designed for use in tanks and vats that are utilized in hygienic applications. This innovative valve is engineered to ensure the safe and effective separation of two distinct products during processing, which is essential in industries such as food, beverages, pharmaceuticals, and chemicals, where preventing cross-contamination is a critical concern. One of the standout features of the INNOVA T valve is its integrated leak detection chamber, which is maintained under atmospheric pressure. This chamber is strategically positioned between the two seats of the valve, providing an additional layer of safety and assurance that the two products remain completely separated during operation.

Typically, one of the products involved is a cleaning agent, commonly known as CIP (cleaning-in-place), which is used for thorough sanitation of equipment without requiring disassembly. The design of the INNOVA T mixproof valve allows it to facilitate cleaning processes while simultaneously managing product flow, enhancing operational efficiency. The valve’s pneumatic actuation ensures swift and precise control over product flow, which is particularly beneficial in high-demand environments where quick adjustments may be necessary.

Furthermore, the INNOVA T valve is constructed with high-quality materials that meet stringent hygiene and safety standards, ensuring durability and longevity even under challenging conditions. Its design also allows for easy maintenance and inspection, minimizing downtime and contributing to overall system efficiency. By providing a reliable solution for managing the flow of sensitive products while safeguarding against contamination, the INNOVA T mixproof valve stands out as an indispensable component in modern hygienic processing applications, delivering peace of mind to operators and ensuring compliance with industry regulations.

• No leakage during the opening/closing of the valve.
• Single-acting pneumatic actuator.
• Easy disassembly of internal parts by loosening a clamp fastener.
• Open lantern allows visual inspection of shaft sealing.

Materials

• Parts in contact with the product: AISI 316L
• Other stainless steel parts: AISI 304
• Gasket – EPDM.

Options

• Gaskets: FPM, HNBR.
• Other connection types.
• Control unit.
• External position sensors.
• Internal surface finish: Ra < 0.5 μm.
• Bodies with heating jacket.
