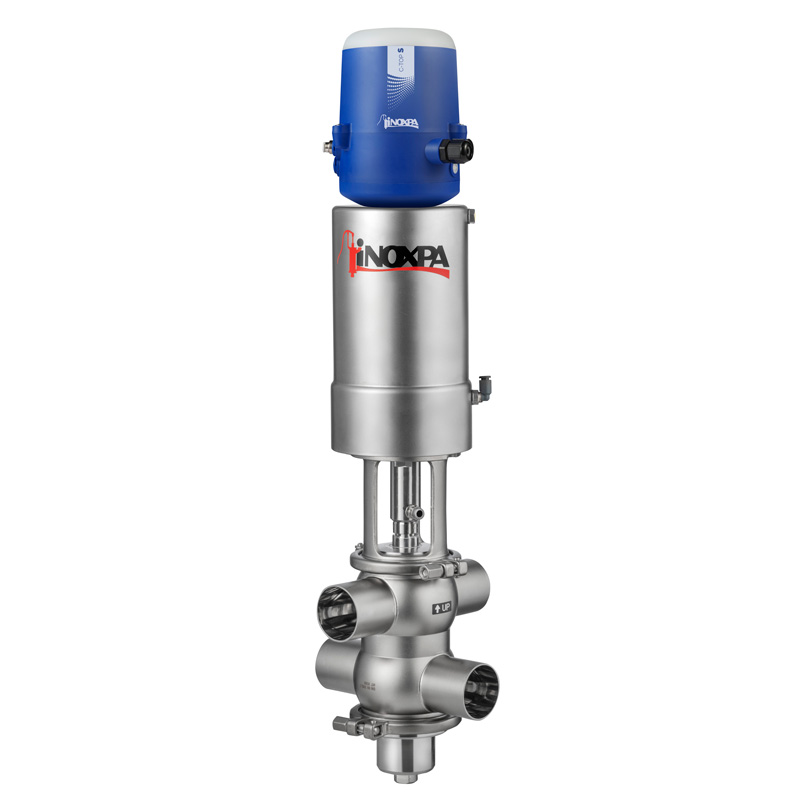

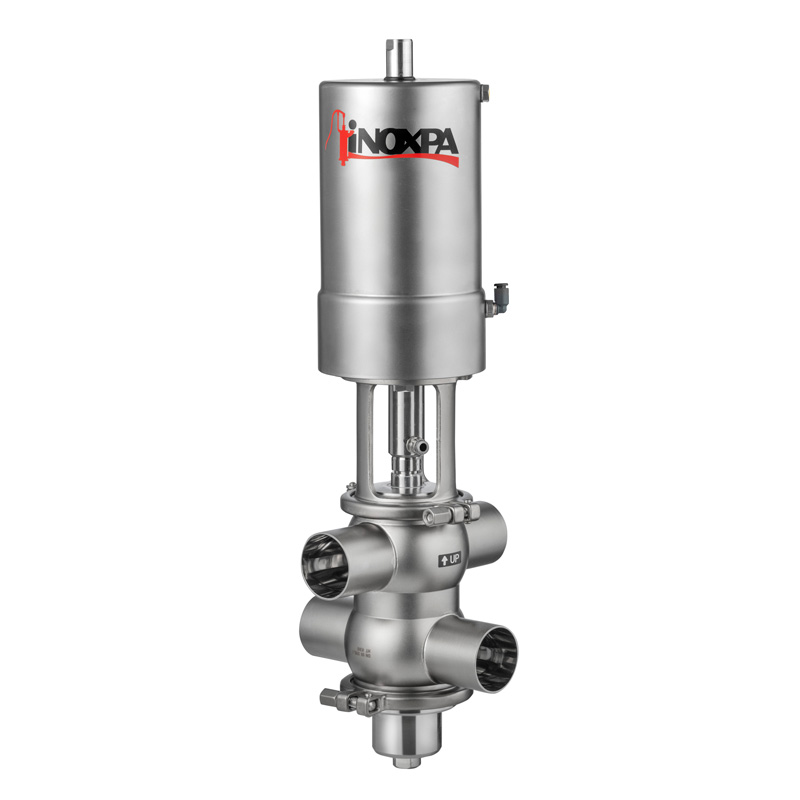

INOXPA INNOVA S Shut-Off Double Seat Mixproof Valve

The INNOVA S-type valve is a sophisticated pneumatic shut-off double seat valve specifically engineered for hygienic applications, making it an essential component in various industries where cleanliness and safety are paramount, such as food processing, beverages, pharmaceuticals, and fine chemicals. A key feature of the INNOVA S-type valve is its innovative leakage chamber, which is maintained under atmospheric pressure and strategically located between the two seats of the valve. This unique design ensures a safe and secure interface between two different liquids, effectively preventing any potential cross-contamination during operation. Typically, one of the liquids involved is a CIP (cleaning-in-place) solution, which is vital for maintaining the highest hygiene standards in processing systems.

To ensure the cleanliness of the leakage chamber, the valve is equipped with a CIP nozzle situated in the lantern. This design allows for efficient cleaning during the CIP process, ensuring that any residual cleaning agents or contaminants are thoroughly removed from the leakage chamber. The ability to clean the chamber effectively not only enhances hygiene but also prolongs the life of the valve, reducing the need for frequent maintenance or replacement.

Constructed from high-quality materials that comply with rigorous hygiene and safety standards, the INNOVA S-type valve is designed for durability and longevity, even in demanding operating environments. Its pneumatic actuation enables precise control over fluid flow, facilitating quick adjustments as necessary and enhancing overall operational efficiency. By providing a reliable solution for managing sensitive products while ensuring optimal cleanliness, the INNOVA S-type valve stands out as an indispensable element in modern hygienic processing systems. Its commitment to maintaining the highest levels of safety and hygiene contributes to the smooth operation of manufacturing processes and instills confidence in operators striving for excellence in their industries.

• Hygienic design according to EHEDG.
• No leakage during the opening/closing of the valve.
• Balanced lower seat.
• Single-acting pneumatic actuator.
• Easy assembly/disassembly of internal parts by loosening a clamp fastener.
• Open lantern allows visual inspection of shaft sealing.
• 360º adjustable body

Materials

• Parts in contact with the product 1.4404 (AISI 316L)
• Other stainless steel parts 1.4301 (AISI 304)
• Gasket in contact with the product EPDM.

Options

• Gaskets: FPM, HNBR.
• Other connection types.
• C-TOP+ control unit.
• External position sensors.
• Internal surface finish: Ra ≤ 0,5 μm.
