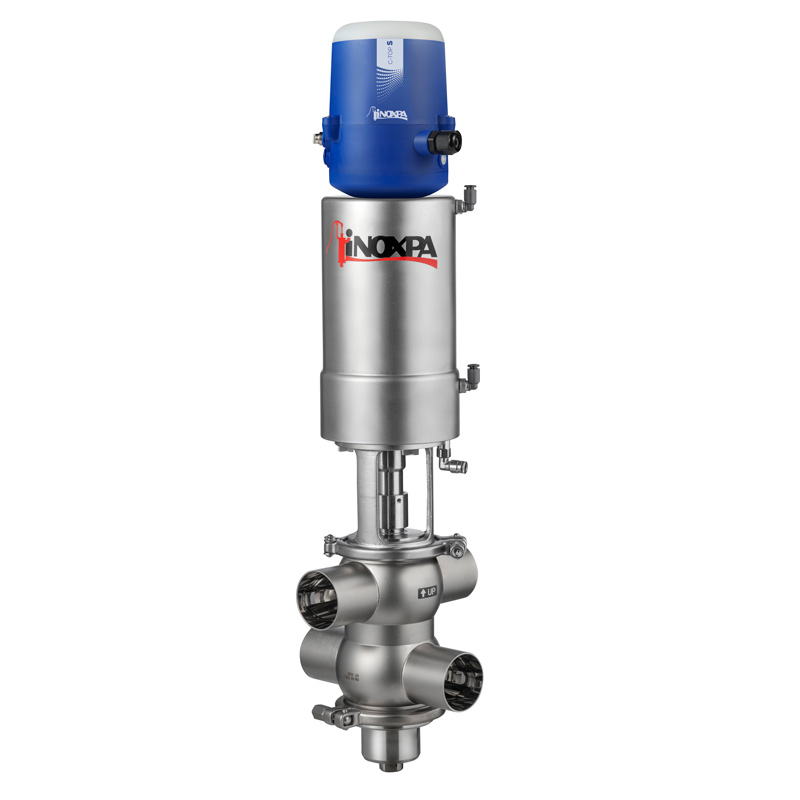

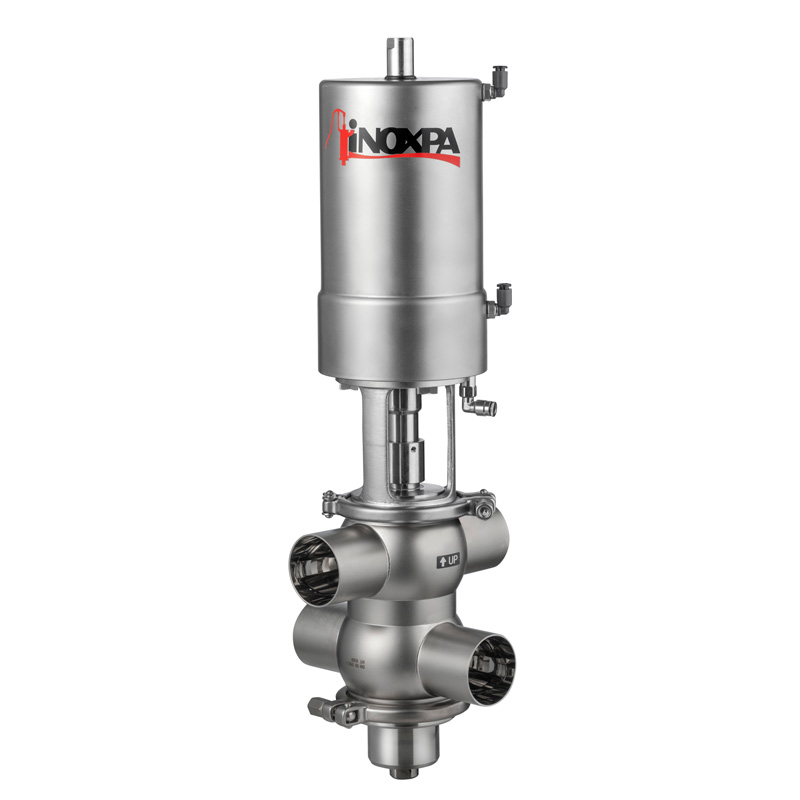

INOXPA INNOVA P Shut-Off Double Seat Mixproof Valve

The INNOVA P-type valve is a pneumatically operated shut-off double seat valve specifically designed for hygienic applications, making it an essential component in industries that prioritize cleanliness and safety, such as food processing, beverages, pharmaceuticals, and chemicals. One of the key features of this valve is its innovative leakage chamber, which is maintained under atmospheric pressure and strategically located between the two seats. This design ensures a safe interface between two distinct liquids, preventing any potential cross-contamination during operations. Typically, one of the liquids handled is a CIP (cleaning-in-place) solution, which is crucial for maintaining hygiene in processing lines.

The ability to manage two different fluids while safeguarding against leaks underscores the INNOVA P-type valve’s reliability and efficiency in demanding applications. During the CIP cleaning process, the valve’s unique design allows for the independent lifting of the seats, providing access to the leakage chamber for thorough cleaning. This feature not only ensures that any residual cleaning agents or contaminants are effectively removed but also promotes optimal hygiene throughout the system.

Additionally, the INNOVA P-type valve is constructed from high-quality materials that comply with stringent hygiene standards, ensuring durability and longevity even in harsh operating conditions. Its pneumatic actuation system facilitates precise control over fluid flow, allowing for rapid adjustments as needed, which is particularly advantageous in high-demand environments where efficiency is paramount. By providing a reliable solution for separating sensitive products while maintaining the highest standards of cleanliness, the INNOVA P-type valve enhances operational safety and efficiency, making it a trusted choice for manufacturers dedicated to quality and hygiene in their processes.

• Hygienic design according to EHEDG.
• No leakage during the opening/closing of the valve.
• Balanced lower seat. Single-acting pneumatic actuator.
• Easy assembly/disassembly of internal parts by loosening a clamp fastener.
• Open lantern allows visual inspection of shaft sealing.
• 360º adjustable body.

Materials

• Parts in contact with the product: Stainless steel AISI 316L
• Other stainless steel parts: Stainless steel AISI 304
• Gasket: EPDM (according to FDA and EC 1935/2004).

Options

• Gaskets: FPM, HNBR.
• Other connection types.
• C-TOP+ control unit.
• External position sensors.
• Internal surface finish: Ra ≤ 0,5 μm.
