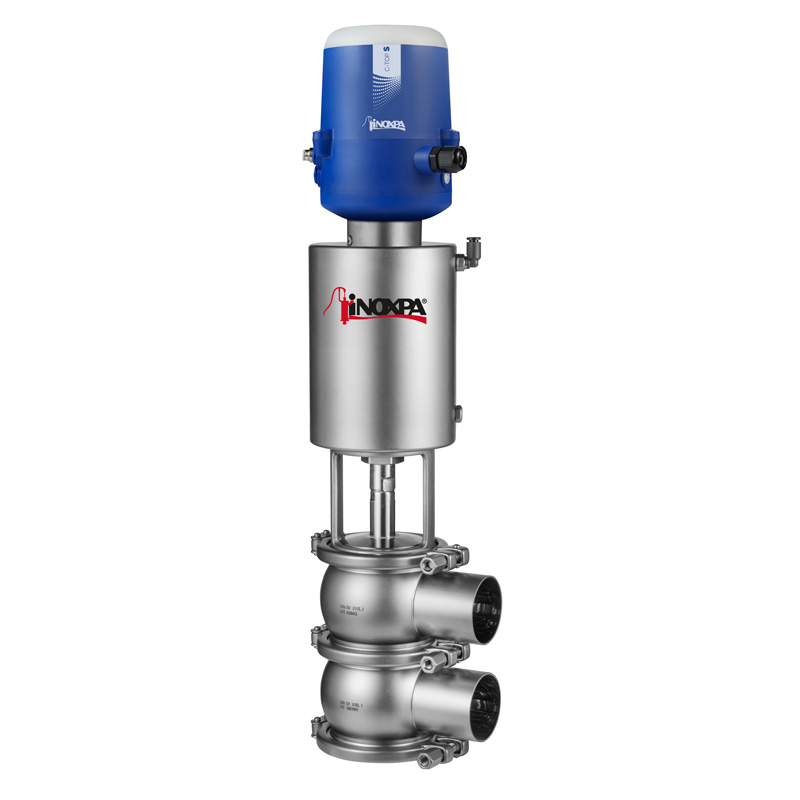

INOXPA INNOVA M Shut-Off Single Seat Valve

The INNOVA M-type valve is a pneumatically operated shut-off seat valve, meticulously engineered for use in hygienic applications across industries such as food, beverages, pharmaceuticals, and chemicals, where maintaining cleanliness and product integrity is essential. This valve is specifically designed to control the direction of product flow from the upper body to the lower body, ensuring smooth and efficient flow management. One of its key features is its ability to close against the flow direction, which helps prevent the occurrence of water hammer, a potentially damaging surge of pressure caused by the sudden closing of a valve. By mitigating this risk, the INNOVA M-type valve not only protects the piping system from damage but also ensures the safe and reliable handling of products. Its robust construction and precise engineering make it ideal for demanding applications that require both hygiene and performance, ensuring a long service life and minimal downtime in critical production environments.

Specification

• Gasket with specific profile guarantees reliability under adverse working conditions
• Hygienic design of the gasket ensures optimal cleaning
• Single-acting pneumatic actuator
• Normally closed valve (NC)
• The valve can be changed to normally open (NO) by simply reversing the position of the pneumatic actuator
• Easy assembly/disassembly of internal parts by loosening a clamp fastener
• Open lantern allows visual inspection of shaft sealing
• 360º adjustable body

Materials

• Parts in contact with product: AISI 316L
• Other stainless steel parts: AISI 304
• Gaskets in contact with the product: EPDM

Options

• Double-acting pneumatic actuator
• Gaskets: FPM, HNBR
• Other connection types
• Control unit
• External position sensors
• Surface finish: Ra < 0.5 μm
• Steam barrier
• Bodies with heating jacket
