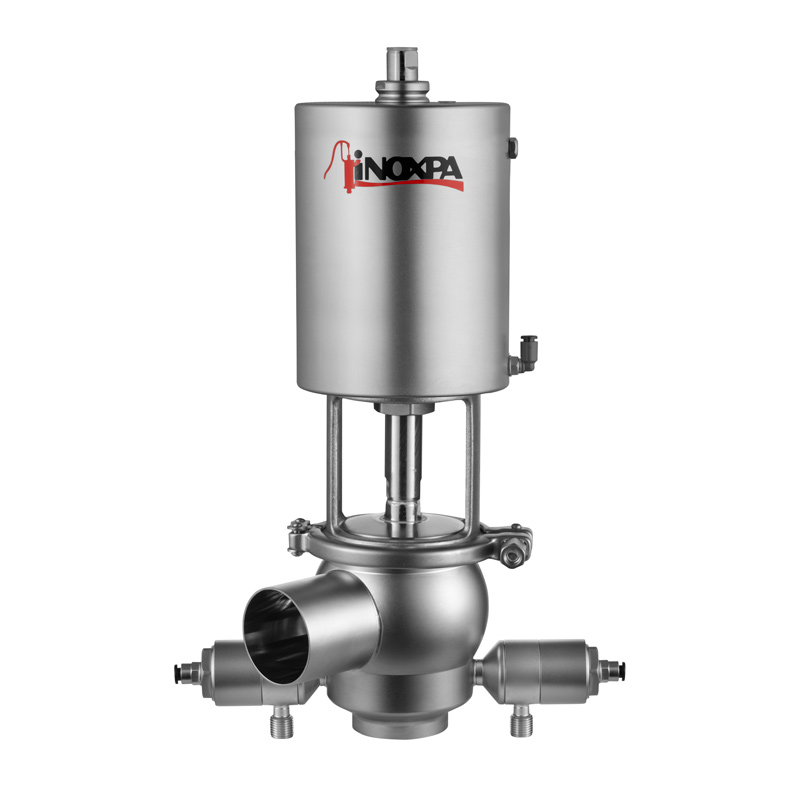

INOXPA INNOVA D Tank Double Seal Mixproof Valve

for hygienic applications that require a safe and reliable separation between two distinct products. This valve is equipped with two seals that create a leakage chamber, maintained under atmospheric pressure, between the two seals. This unique design allows for a secure and contamination-free separation of two different substances, one of which is typically a cleaning medium, such as CIP (cleaning-in-place). This feature is particularly valuable in industries such as food, beverages, pharmaceuticals, and chemicals, where preventing cross-contamination during product changeovers or cleaning processes is critical.

Specification

• Specific profile seat seals, conical upper seal, radial lower seal
• Main valve equipped with a single-acting actuator (NC) and normally open leakage valves (NO)
• Easy assembly/ disassembly of internal parts by loosening a clamp fastener
• Open lantern allows visual inspection of shaft sealing
• 360º adjustable body

Materials

• Parts in contact with the product: AISI 316L
• Other stainless steel parts: AISI 304
• Gasket – EPDM

Options

• Double-acting pneumatic actuator
• Gaskets: FPM, HNBR
• Other connection types
• Control unit.
• External position sensors
• Surface finish: Ra < 0.5 μm
• Steam barrier
