INOXPA CIP Automatic Mobile System

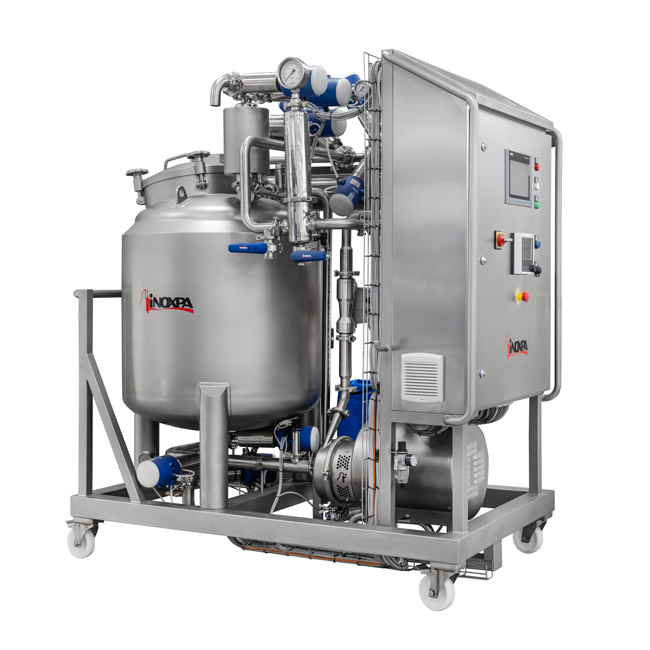

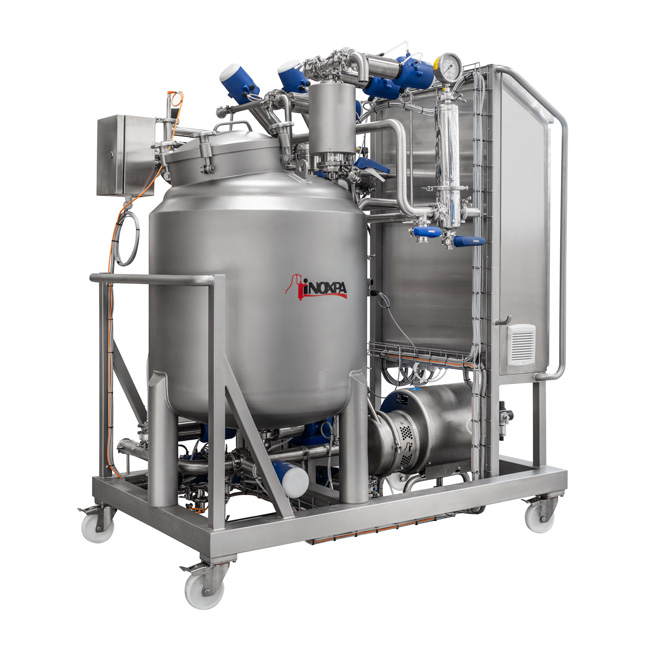

INOXPA designed an automatic CIP system to help to clean plants, eliminate impurities, and reduce bacteria levels. Clean plants, eliminate impurities, and reduce bacteria levels.

Specification

• • 1 insulated 300L tank for preparing the cleaning solution
  • Electrical resistance heating with temperature regulation fitted in the tank
  • Constant level in the tank using a pressure switch
  • Hyginox SE-28 pump
  • Collectors with automatic butterfly valves with pneumatic actuator and C-TOP+ control unit
  • Base frame with wheels
  • Stainless steel electric panel Comes with a 5.7”
  • SIEMENS touchscreen and PLC using the SIEMENS S7-1200 CPU with programmes
  • Tested and verified in our installations.
  • The system includes the following elements:
    • The pneumatic valves prevent errors during CIP operational phases such as rinsing with water,
    • Chemical product and its subsequent recovery,
    • Final rinsing

Materials

• Tank: AISI 316L
• Piping in contact with product: AISI 316L
• Base frame and other steel parts: AISI 304
• Pump: Hyginox SE-28, 4 kW
• Mechanical Seal:
  • Rotary part: Ceramic (Cer)
  • Stationary part: Carbon (C)
  • Gaskets: EPDM
• Tank insulation: Mineral Wool

Options

• 300 L AISI 304 tank for water recovery
• In-line filter with a check valve and tubular sight glass
• Detergent concentration dosing pump with a conductivity meter
• Flow detector in the return line
• CIP return pump ASPIR A-80, 3 kW
• Flow rate control with an electronic flow meter and variable-frequency drive
• Pressure gauge at the pump outlet
• Cleaning process record
