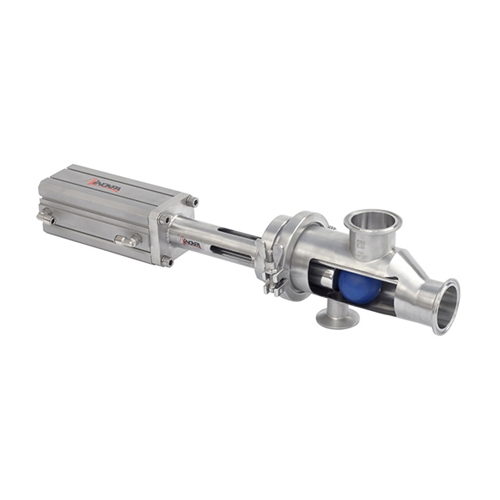

INOXPA SILPIG
The PIG system is ideal for the recovery of any product remaining in a pipeline in the end of the transfer process. As this product can be of a high value the PIG system recovers the product removing it from the pipelines and preparing the pipeline for a CIP process. Another benefit is the reduction of the fluid sent to the sewage treatment plant that results in saving energy and water.
The PIG system is ideal for the recovery of any product remaining in a pipeline in the end of the transfer process. As this product can be of a high value the PIG system recovers the product removing it from the pipelines and preparing the pipeline for a CIP process. Another benefit is the reduction of the fluid sent to the sewage treatment plant that results in saving energy and water. The main application of the system is viscous media. Among the products treated there are chocolates, marmelades, confectionary creams in the food-processing industry, or gels, creames and other body care products of high value in the cosmetic industry.
Design & Features
- Standard system: SIL PIG.
- Hygienic system.
- High level of product recovery.
- PIG can pass through 1.5D bends.
- Connections: DIN (standard).
- Size ranges: DN40 (1 ½”) to DN80 (3″)
Materials
- Metallic product contact surfaces AISI 316 L
- Other metal parts AISI 304
- PIG Silicone
- Gaskets EPDM
Option
- Connections: RJT, SMS, clamp, flanges, etc.
- Spheres: EPDM, Nitrile, Neoprene and Viton ®.
- Gaskets: Silicone, NBR, PTFE, Viton ®.
- STERIPIG system.
- Manual system (launch and/or reception)
- Various levels of automation.
- Control panel.
- Second drain port.
Related products
Pigging SystemINOXPA STERIPIG
- Pigging System

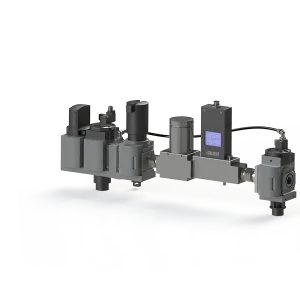

SERVINOX RVO
