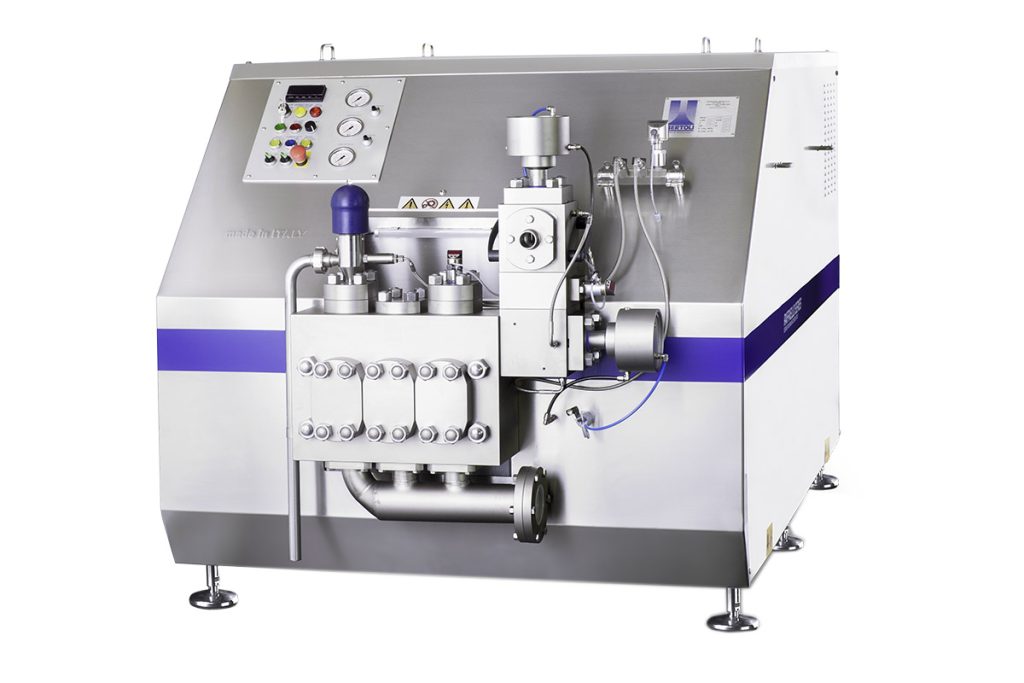

BERTOLI Raffaello HA33 Homogenizer

The Bertoli Raffaello Series – HA33 Homogenizers feature a hygienic design in compliance with MOCA standards, ensuring reliable performance and extended maintenance intervals. Equipped with a self-alignment plunger system, the homogenizer enhances operational precision and durability. The poppet valves are specifically designed to handle viscous and abrasive products with ease. Maintenance of the liquid end is straightforward and user-friendly, while the transmission system is designed to keep maintenance costs low. The equipment operates quietly, minimizes water consumption, and incorporates a simplified design with reduced complexity, making it an efficient and practical choice for various industrial needs.

Specification

• • Forged block made of Duplex, SAF2205, 3 Plungers made of AISI630L
  • Direct transmission system with trapezoidal belts and pulleys
  • Homogenizing group with hydro-pneumatic adjustment of the pressure for a great stability and homogenizing valvesin stellite™
  • Flat valve seat and poppet/ball valves type made of stellite 20™
  • Digital pressure transmitter, 4-20 mA, with ceramic membrane
  • Overpressure valve, flow switch alarm
  • Splash lubrication system, die cast alluminium crankcase, nitrurized crankshaft
  • Terminal box and control panel for local/remote control
  • Easy opening panels

Materials

• Parts in contact with the media: St.St.S 316L
• Single mechanical seal (dry running)
• Sterile sampling system

Options

• Second stage homogenizing group
• Vibration and temperature monitoring and alarm
• Forged multi-block made of Super Duplex, SAF2507
• Soundproof design
• Aseptic execution
• Sterile water generator by means of condensed steam generator
• Patent pending sterile water generator by means of microfiltration
• Electric power board for fixed or variable capacity
• Remote control by 4-20 mA signal
• Fully automatic pressure control by means of PLC
• Design suitable with 3A, EHEDG, or PHARMA standards
• Low roughness and electropolished wetted parts
• Certification manual for cGMP
• Standard or Sharp Edge Homogenizing valve with different geometries
• Materials availability: Tungsten carbide, Zirconia Oxide
• Explosion proof design
• Seat valve made of Tungsten carbide
