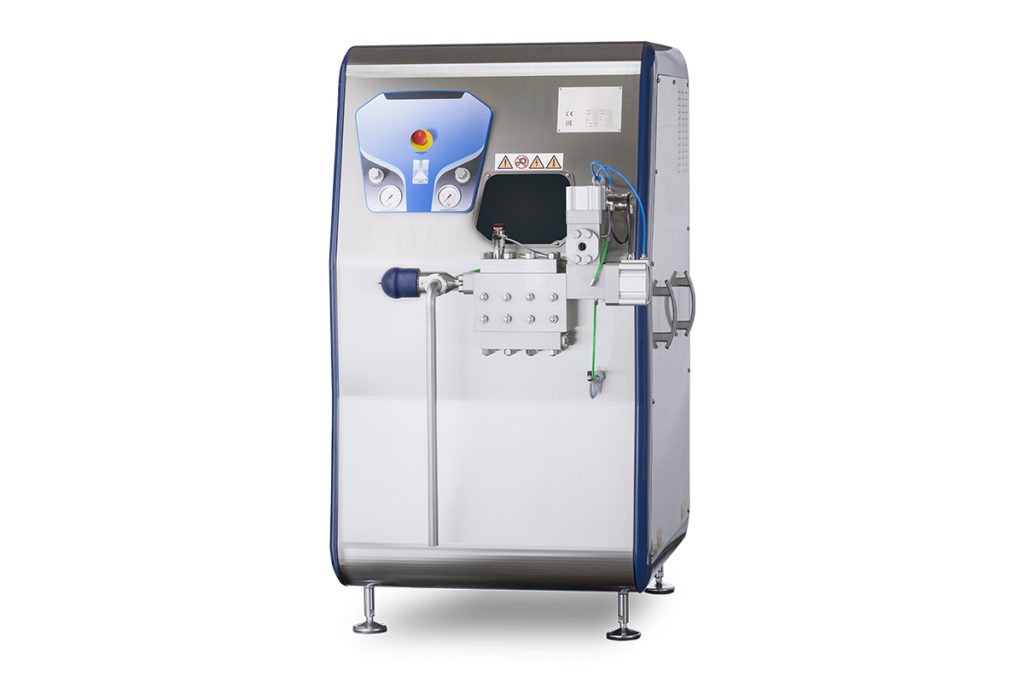

BERTOLI Michelangelo HA31 Homogenizer / PA31 Pump

The Bertoli Michelangelo Series – HA31 Homogenizers feature a hygienic design and construction that adheres to MOCA standards, ensuring safe and efficient operation. The liquid end is designed for easy maintenance, making routine servicing hassle-free. The transmission system is optimized to reduce maintenance costs, providing a cost-effective solution for long-term use. With easily accessible open panels, maintenance tasks are made more convenient. Additionally, the equipment operates quietly, ensuring a smooth and comfortable working environment.

Specification

• • Forged block made of Duplex, SAF2205, 3 Plungers made of AISI630L
  • Direct transmission system with trapezoidal belts and pulleys
  • Homogenizing group with hydro-pneumatic adjustment of the pressure for a great stability and homogenizing valvesin stellite™
  • Flat valve seat and poppet/ball valves type made of stellite 20™
  • Digital pressure transmitter, 4-20 mA, with ceramic membrane
  • Overpressure valve, flow switch alarm
  • Splash lubrication system, die cast alluminium crankcase, nitrurized crankshaft
  • Terminal box and control panel for local/remote control
  • Easy opening panels

Materials

• Parts in contact with the media: St.St.S 316L.
• Single mechanical seal (dry running).
• Sterile sampling system.

Options

• Second Stage Homogenizing Group:
  • Forged multi-block made of Super Duplex, SAF2507
• Aseptic Execution:
  • Sterile water generator by condensed steam
  • Patent-pending sterile water generator by microfiltration
• Design Suitability:
  • Compliant with 3A, EHEDG, or PHARMA standards
• Low roughness and electropolished wetted parts
• Standard or Sharp Edge Homogenizing Valve:
  • Available with different geometries and materials such as Tungsten carbide and Zirconia Oxide
• Vibration and temperature monitoring with alarm
• Seat valve made of Tungsten carbide
• Pumping Plungers Availability:
  • HVOF chromium carbide jet coat treatment
  • AL2O3, Integral ceramics
• Electric Power Board:
  • Available for Fixed or Variable capacity
  • Remote Control via 4-20 mA signal
• Fully Automatic pressure control by PLC
• Explosion proof design
• Soundproof design
