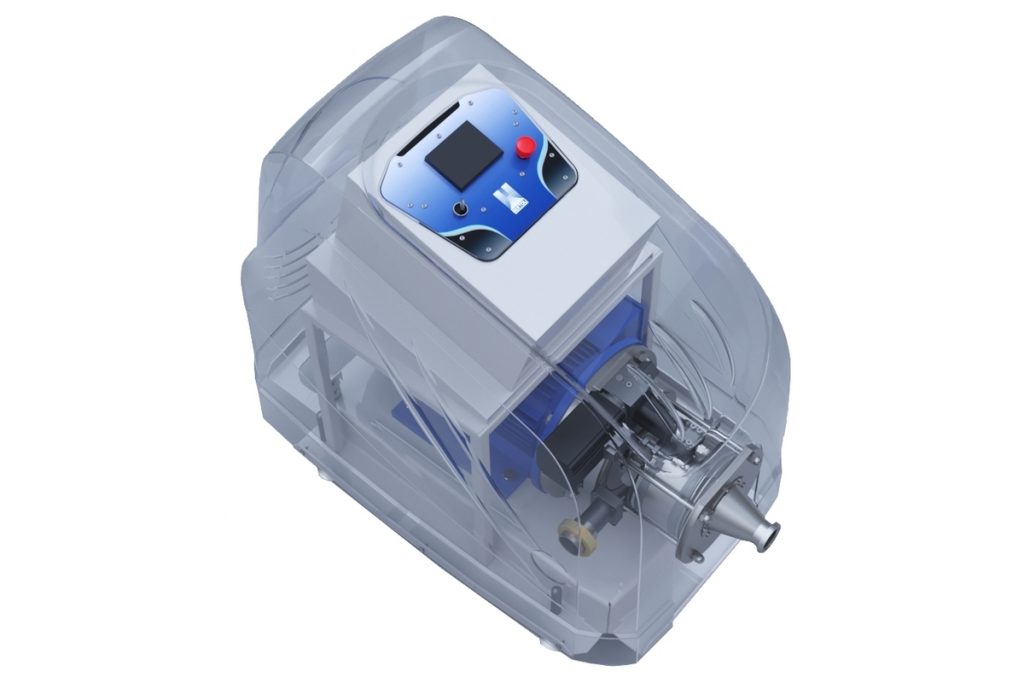

BERTOLI BMC Colloidal Mills

The Bertoli Colloidal Mills – Model BMC is equipped with a cooling mechanical seal made of tungsten carbide, ensuring durability and optimal performance. Its rotor and stator are constructed from AISI 630 stainless steel, offering excellent wear resistance. The mill features a painted iron frame and operates with a noise level below 85 dBa for a quieter working environment. It includes flange and counterflange connections for efficient product inlet and outlet. Powered by an electric motor compatible with 220/380/440V, 50/60Hz, 2 poles, the mill also integrates a Siemens KTP 400 PLC automation system for precise grinding regulation.

Specification

• • Forged block made of Duplex, SAF2205, 3 Plungers made of AISI630L
  • Direct transmission system with trapezoidal belts and pulleys
  • Homogenizing group with hydro-pneumatic adjustment of the pressure for a great stability and homogenizing valvesin stellite™
  • Flat valve seat and poppet/ball valves type made of stellite 20™
  • Digital pressure transmitter, 4-20 mA, with ceramic membrane
  • Overpressure valve, flow switch alarm
  • Splash lubrication system, die cast alluminium crankcase, nitrurized crankshaft
  • Terminal box and control panel for local/remote control
  • Easy opening panels

Materials

• Parts in contact with the media: St.St.S 316L.
• Single mechanical seal (dry running).
• Sterile sampling system.

Option

• Second stage homogenizing group
• Vibration and temperature monitoring and alarm
• Forged multi-block made of Super Duplex, SAF2507
• Soundproof design
• Aseptic execution
• Sterile water generator by means of condensed steam generator
• Patent pending sterile water generator by means of microfiltration
• Electric power board for fixed or variable capacity
• Remote control by 4-20 mA signal
• Fully automatic pressure control by means of PLC
• Design suitable with 3A, EHEDG, or PHARMA standards
• Low roughness and electropolished wetted parts
• Certification manual for cGMP
• Standard or Sharp Edge Homogenizing valve with different geometries
• Materials availability: Tungsten carbide, Zirconia Oxide
• Explosion proof design
• Seat valve made of Tungsten carbide
