GALDI RG280 Series
The RG280 is a next-generation Gable-Top packaging machine for ESL and delicate products, designed to raise the standards in the segment of medium capacity food fillers.
Description
Specification
Description
The RG280 stands for a new generation of medium-capacity Gable Top packaging machines.
Fully VDMA IV compliant, it’s suitable for the filling of ESL Dairy products, Plant-based beverages, Fresh Juice and High Acid products
distributed at ambient temperature.
Specification
Specification
- Automatic CIP Box Cover
- Waste Cartons Ejection System
- High Efficiency HEPA Filtered Laminar Air-flow Unit
- Modulating System for Product Inlet
- Stainless Steel Mandrels
- Stainless Steel Top Sealing Jaws and Guides
Technical Features
- Speed: Up to 7000 cartons per hours
- Filler Volumetric piston filler + Bottom up
- Length: 7715 mm
- Width: 1500 mm
- Height: 3655 mm
- Compressed Air:
- Flow: 760 nl/min
- Pressure: 600 kPa
- Electrical Data:
- Max. Power 56KVA
- Nominal Power 29 KVA
- Nom. Voltage 400 Vac – 50Hz
- Num. of Phases 3P + N + E
- Cooling water:
- Waste water 5 l/min @ 16°C – 50/150 kPa
- Chilled water 4 l/min @ 4°C – 50/150kPa
Options
- Ultrasonic Screw Cap Applicator moved by servomotors
- Automatic secondary packaging options
- Ink-jet Date Coder on Outfeed Conveyor
- Lubrification oil collectors
Related products
Non Aseptic Gable Top Filling MachineGALDI RG270 UCS Series
- Non Aseptic Gable Top Filling Machine

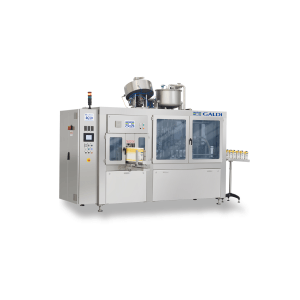

GALDI RG50 Series
- Non Aseptic Gable Top Filling Machine

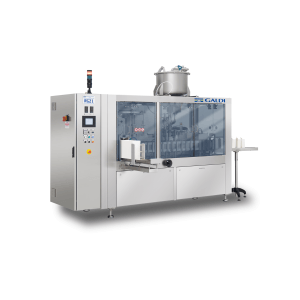

GALDI RG21 Series
