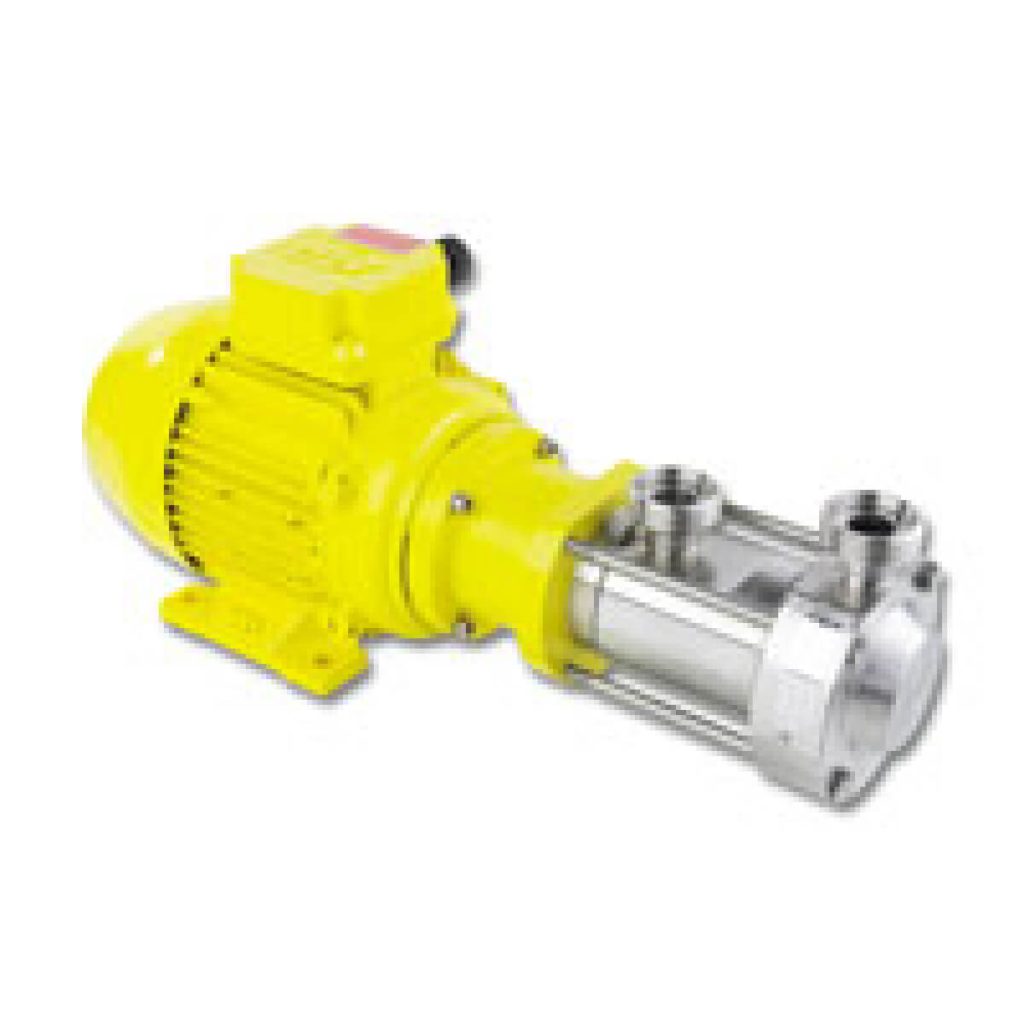

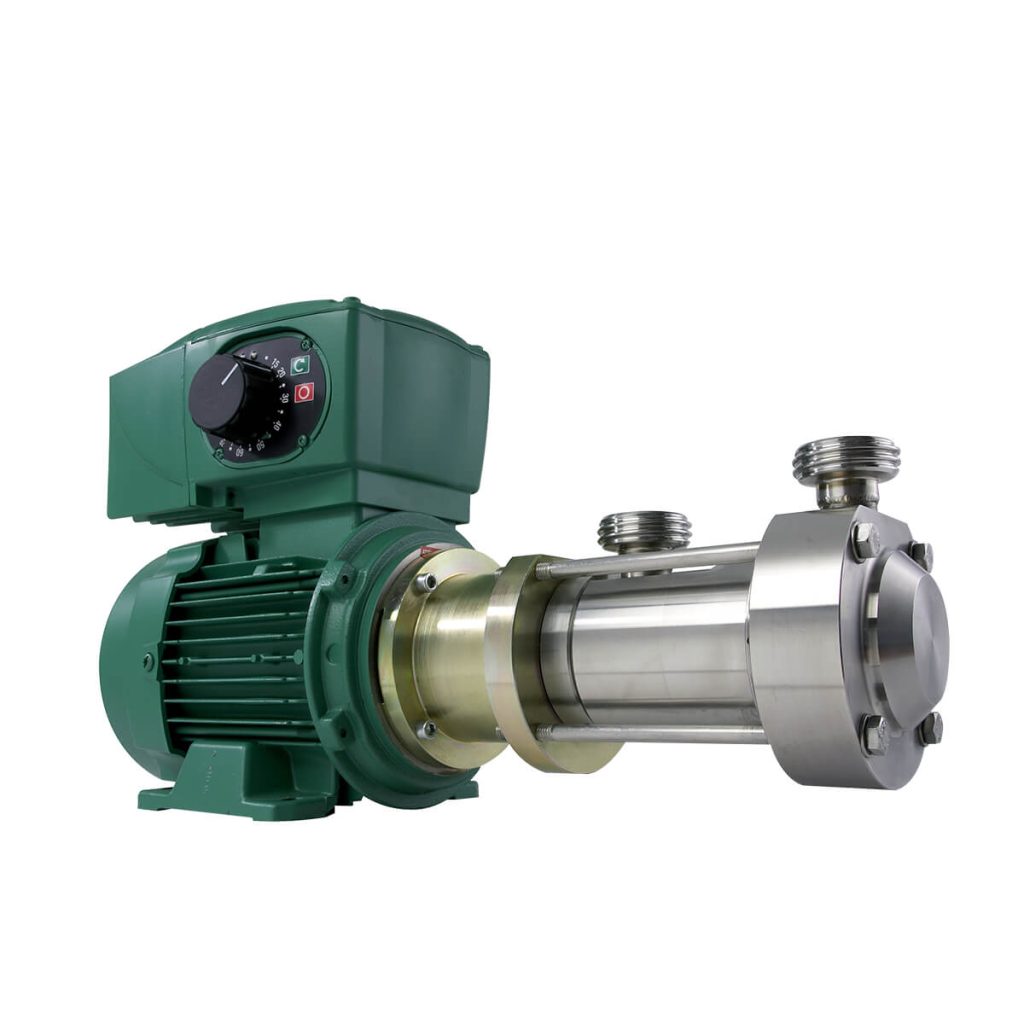

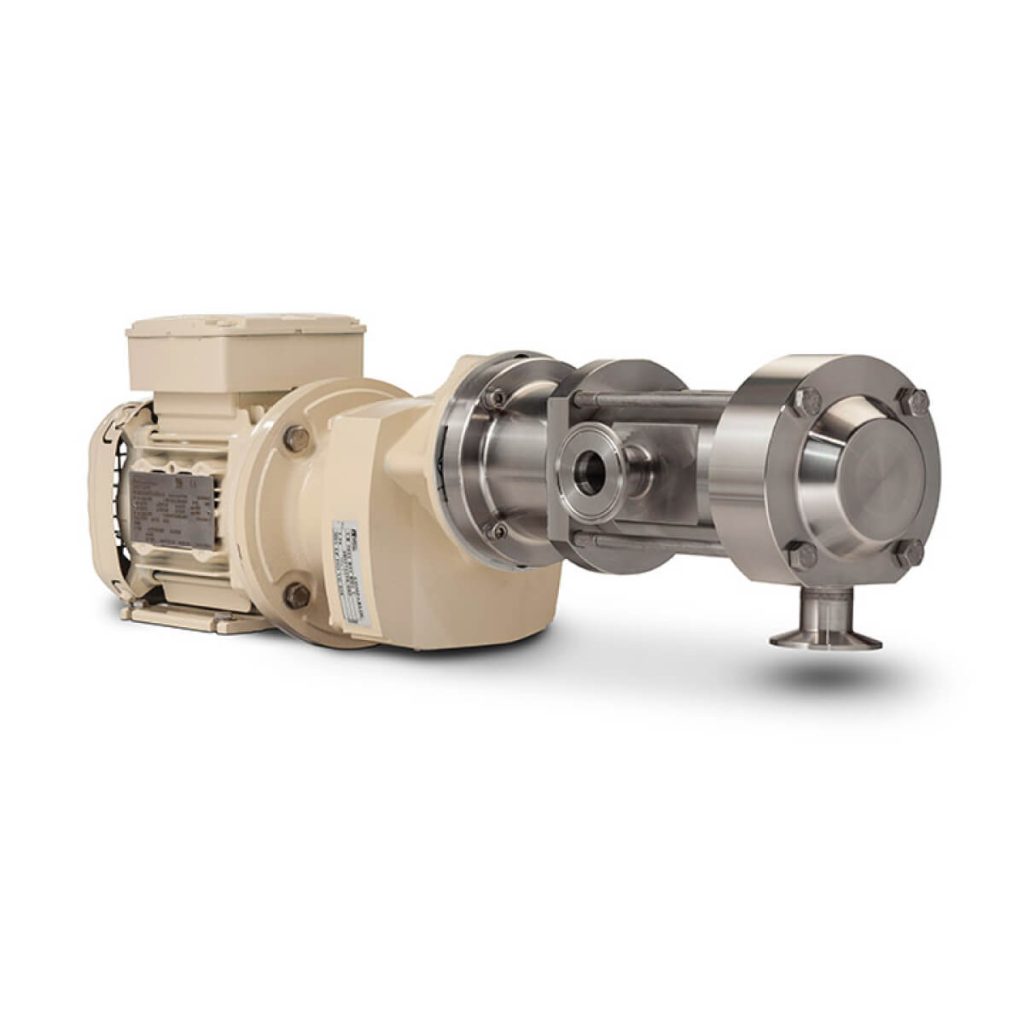

MOUVEX Micro C Series Eccentric Disc Pump
Mouvex Micro C Series Eccentric Disc Pumps, positive displacement are designed for chemical and hygienic applications, offering high suction and discharge pressures for self-priming and line stripping. Ideal for continuous dosing with low flow rates below 800 l/h.
The Mouvex® Micro C Series Eccentric Disc Pumps are engineered to meet the demanding requirements of a wide range of pumping applications in both the chemical and hygienic markets. Designed with versatility and efficiency in mind, these pumps excel in handling various fluids, including those that are highly viscous, shear-sensitive, or contain particulates. A key feature of the Micro C Series is its innovative seal-less design, which eliminates common wear points associated with traditional pumps. The incorporation of stainless-steel bellows not only enhances the pump’s durability and longevity but also ensures exceptional safety and product containment, making it an ideal choice for industries where product purity is paramount.
This advanced design also allows the pump to achieve very high suction and discharge pressures, giving it the capability to self-prime and fully strip lines. This is particularly beneficial for applications where maximizing product recovery is essential, as it minimizes product waste, reduces operational costs, and increases overall process efficiency. Furthermore, the pump’s ability to operate efficiently under both high and low pressure conditions makes it suitable for a wide array of industries, from chemicals and pharmaceuticals to food and beverage production. The Mouvex® Micro C Series delivers reliable, consistent performance, ensuring that even the most delicate or challenging products are handled with care, all while maintaining the highest standards of hygiene and safety.
- Seal-less design eliminates leakage
- Line-stripping capabilities
- Self-priming
- Strong suction and discharge pressure
- Shear-sensitive product transfer
- Consistent flow rate independent of pressure
- Low linear speed
- Precise dosing
- Accurate volume metering with high turn down
- Dry-run capable
- Maintains performance over time
- Effective with both high and low viscosity fluids
- Full drainability
- Clean-In-Place (CIP)/Sanitize-In-Place (SIP) able
- Easy integration
Materials
- Parts in contact with the product: SS 316L to ensure corrosion resistance and product durability.
- Compliant with food-grade standards to safeguard product purity
- Non-product contact: SS 304
- Shaft sealed by Stainless Steel bellows
Options
- Direct drive
- Direct drive with VFD
- Gear motor drive
- Gear motor drive with VFD
- Gaskets: PTFE Encapsulated
- 90° pump connection
Related products

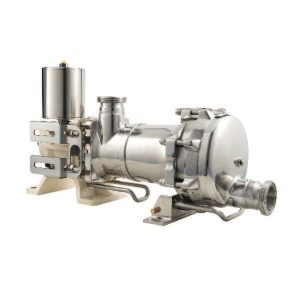

Eccentric Disc PumpMOUVEX H-Flo Series Eccentric Disc Pump
