INOXPA Diaphragm Valve VeeValv

Diaphragm valves, manually or pneumatically operated, are specially designed for use in hygienic and aseptic processes in the food-processing and pharmaceutical industries. The valve is excellent for flow control as well as for open/close duties Suitable for hygienic and aseptic processes in the food-processing and pharmaceutical industries

Specification

• Straight through flow path, high Kv factor
• Controlled compression of sealing
• Compact actuator

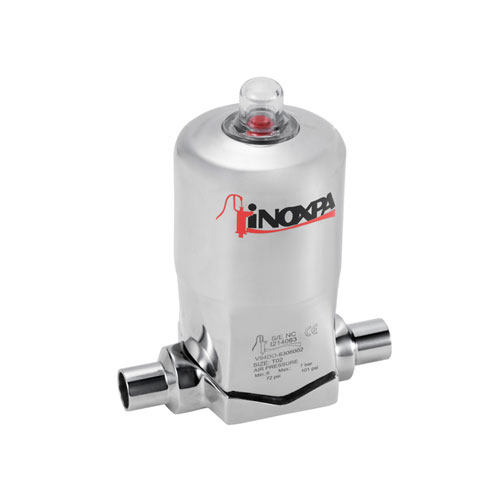

• Normally closed (NC) pneumatic actuator (standard)
• Sealed actuator with no maintenance required (stainless steel version)
• Handle with stroke limiter (except size Nº4)
• Leak detector
• Position indicator
• Interchangeability of parts
• Ergonomic handle
• Traceability of components

Materials

• Parts in contact with the product: Stainless steel AISI 316L
• Other stainless steel parts: Stainless steel AISI 304
• Plastic parts: PP + 30 GF
• Diaphragm: EPDM

Options

• Diaphragm: FPM, VMQ (according to FDA 177.2600 and USP Class VI) and PTFE / EPDM separate (according to FDA 177.2600)
• Manual or pneumatic actuation

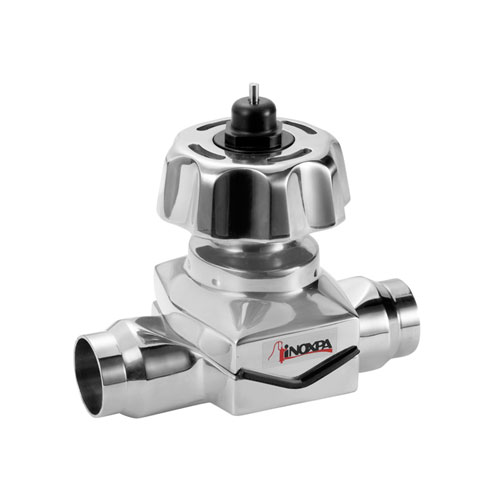

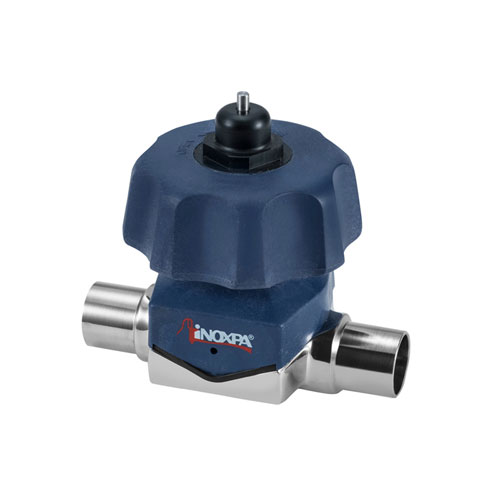

• Handle: stainless steel or plastic
• Bonnet: stainless steel or plastic
• Normally open (NO) double-acting pneumatic actuator
• Pneumatic actuator with stroke limiter
• Pneumatic actuator with external switch
• Control box with switches and solenoid valves
• Valve with controller and positioner
• Tank bottom valve
• Various types of connections
• Materials and roughness certificates
