INOXPA Prolac HCP WFI
Higher standards are required in the pharmaceutical industry than in the food industry to pumping products like purified water (PW), water for injection (WFI), etc.

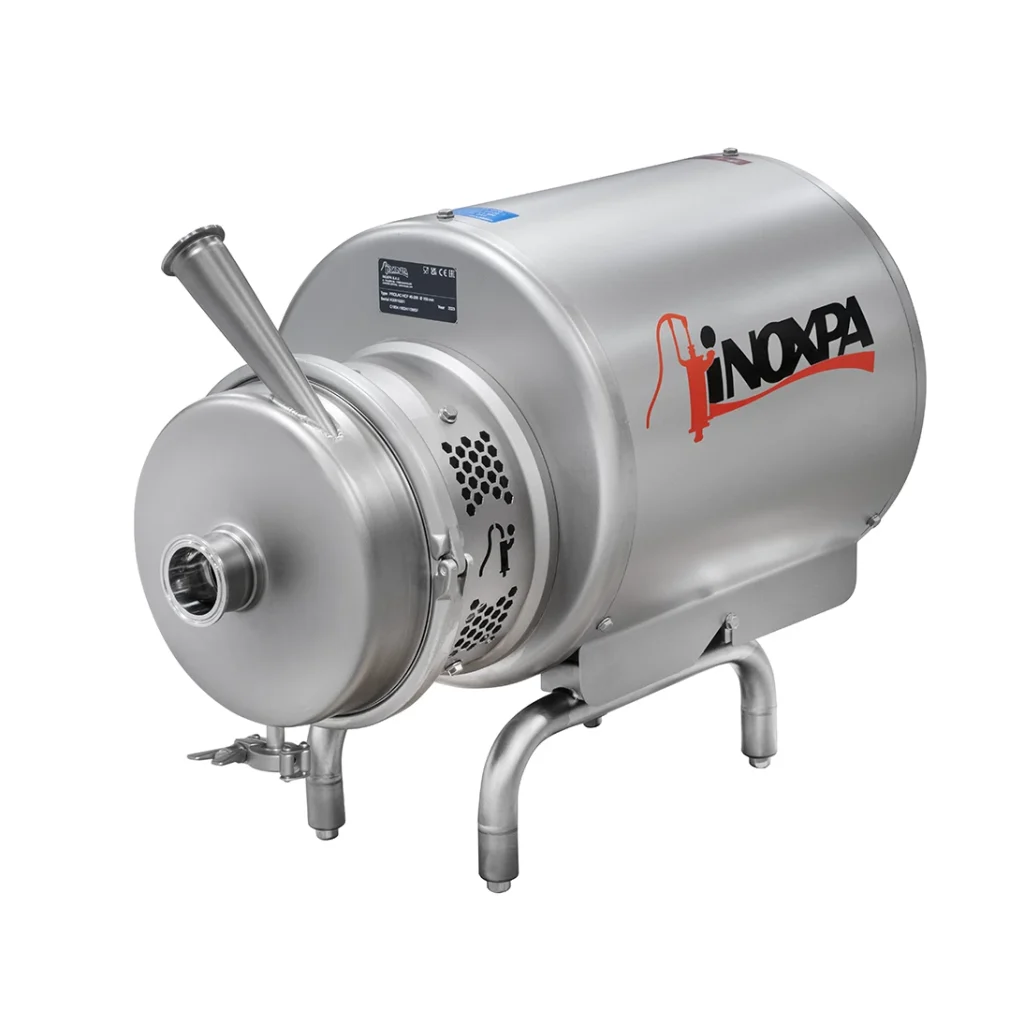

PROLAC HCP is a range of close-coupled centrifugal pumps with hygienic design, compact and highly efficient. It is made of a cold-formed stainless steel casing, impeller, mechanical seal, pump cover, lantern and shaft, connected to the motor shaft by mechanical compression. The motor complies with the IEC standards, it is protected with a stainless steel shroud and provided with the height adjustable hygienic designed legs. The pump is EHEDG certified,it is especially designed for CIP/SIP without disassembly.
Specification
- Close-coupled centrifugal pumps with hygienic design.
- Compact and highly efficient.
- Made of cold-formed stainless steel casing, impeller, mechanical seal, pump cover, lantern, and shaft.
- Equipped with height-adjustable hygienic designed legs.
- Designed according to EHEDG recommendations.
- Easily cleaned by CIP/SIP systems without disassembly.
- Authorized to carry the 3-A symbol.
Materials
- Parts in contact with the product: SS 316L to ensure corrosion resistance and product durability.
- Compliant with food-grade standards to safeguard product purity
- Non-product contact: SS 304
- Mechanical seal:
- Rotary part: Silicon carbide (SiC).
- Stationary part: Carbon (C).
- Gaskets: EPDM.
Mechanical seal:
Rotary part Silicon carbide (SiC)
Stationary part Carbon (C)
Gaskets EPDM
Options

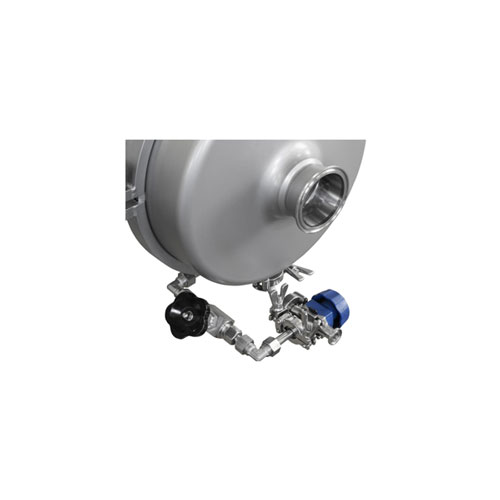

- Pump casing with drain/heating chamber.
- Different connection types.
- Various mechanical seal materials.
- Single or double mechanical seal.
- Gaskets options: FPM or FFKM.
- Motor customization.
- Additional accessories: trolley/control panel.
- ATEX Certification.
- Options for 3-A Symbol Pumps.
