FBR-ELPO Monoblocks for Aseptic Treatment and Filling

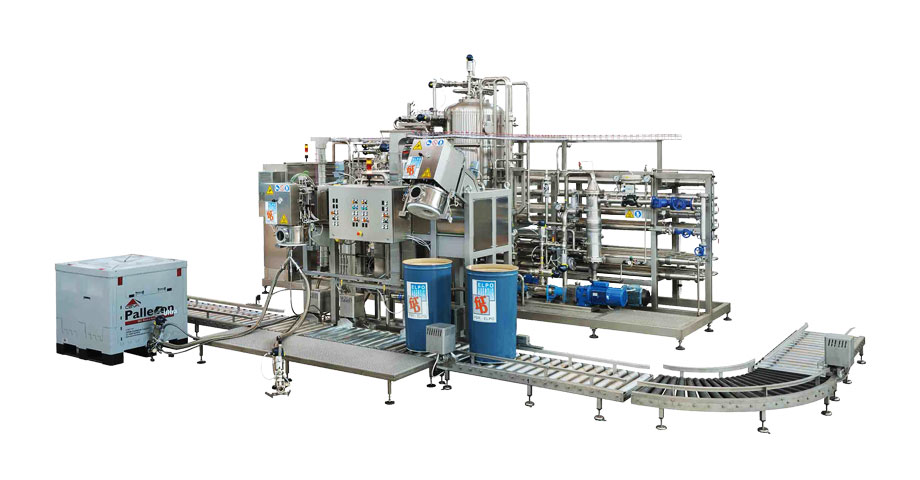

For customers having space problems, FBR ELPO manufactures the “MONOBLOCK” system, a version that includes both the sterilizer and the aseptic filler on a single frame, as well as the product buffer tank. A solution that ensures enormous advantages, in terms of: compact overall dimensions, costs saving, greater functionality and reliability. Reliable for Concentrates, diced tomatoes, fruit and tomato puree, concentrates of clear fruit juices and dairy products.

Technical Data

Single Head :

• Bags: 200-1000 L
• Bag Container: Drums in a row or 4 drums on pallet for bags of 200 L
• Operating Speed: 25-30 bags/h (200 L), up to 7 bags/h (1000 L)
• Installed Power: 6 kW
• Steam Consumption: 10 kg/h at 6 bar
• Air Consumption: 3 Nm³/h at 8 bar

Double Head :

• Bags: 200-1000 L
• Bag Container: Drums in a row or 4 drums on pallet for bags of 200 L
• Operating Speed: 55-60 bags/h (200 L), up to 14 bags/h (1000 L)
• Installed Power: 10 kW
• Steam Consumption: 20 kg/h at 6 bar
• Air Consumption: 5 Nm³/h at 8 bar
