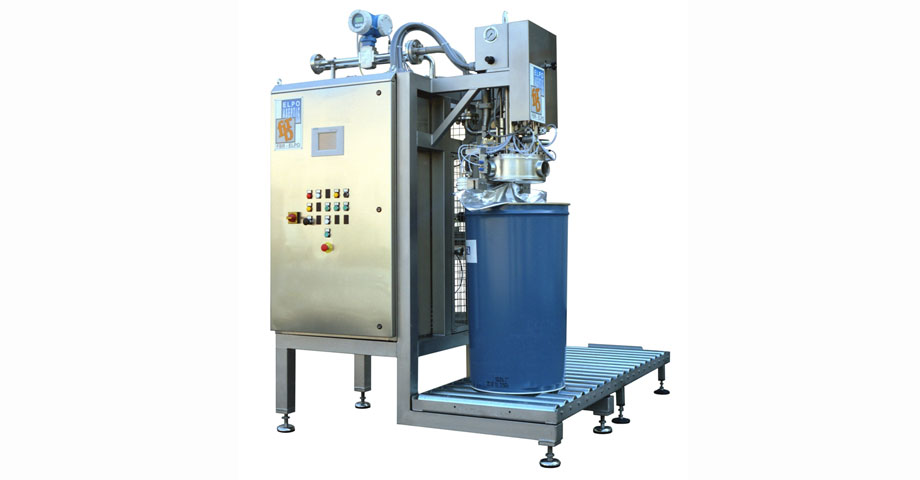

FBR-ELPO Mini Aseptic Filler

Suitable for small productions, the single head “MINI” aseptic filler is the manual version of FBR ELPO. Equipped with a fixed filling head, it has been designed for the filling of 3- 5-10 -20, 200 L. bags. “MINI” fillers can be manufactured with a 1 or 2 filling head: in the 1 version the cap and the spout can be sterilized with steam only. The 2 version can use both 1″ and 2″ spouts, sterilized with steam only or with chemical agents.

The machine is perfect to process products such as tomato and fruit concentrates, fruit purees, concentrates of clear fruit juices, milk, fruit juices or purees with small pieces in suspension.

Technical Data

HEAD 1 :

• Operation speed: 25 drums/h
• Height: 2150 mm
• Width: 840/1800 mm
• Length: 1900 mm
• Installed power: 1 KW
• Steam consumption: 10 Kg/h – 6 Bar
• Air consumption: 3 Nm³/h – 8 Bar
• Max. product dimensions in the filling valve: 9 mm

HEAD 2 :

• Operation speed: 25 drums/h
• Height: 2150 mm
• Width: 840/1800 mm
• Length: 1900 mm
• Installed power: 1 KW
• Steam consumption: 20 Kg/h – 6 Bar
• Air consumption: 3 Nm³/h – 8 Bar
• Max. product dimensions in the filling valve: 44 mm
