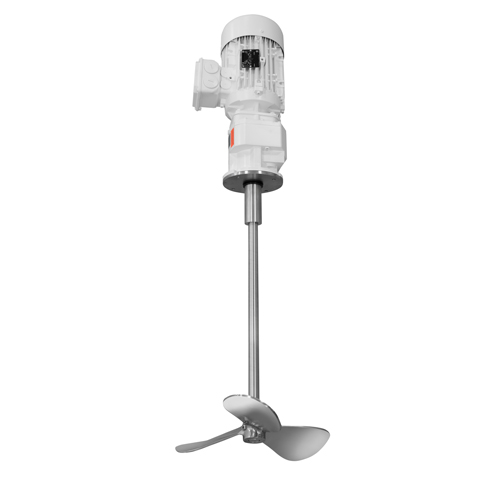

INOXPA NBI Vertical Agitator

The NBI series agitators are medium speed vertical agitators with geared motor. Used for medium or mild agitation of medium or low viscosity products in mixing, dissolution, dispersion, and maintenance processes within food processing, cosmetics, pharmaceutical, or chemical industries.

Design & Features

• Vertical agitator with V-ring sealing.
• Propeller attached to shaft and shaft attached to geared motor using Allen studbolts.
• Helical gear unit with reinforced bearings and food-grade oil.
• Motors: IP 55, F-class insulation, Max. power 1.1 kW.
• Marine propeller (Type 10).

Materials

• Parts in contact with the product: Stainless steel AISI 316L
• V-ring: NBR

Option

• FPM V-ring.
• Welded propeller with Ra ≤ 0.5 μm surface finish.
• Shaft and propeller lined with plastic material for corrosive products.
• Drive shroud.
• Motors with other protections.
