INOXPA BCI Vertical Agitator

The range of the BCI agitators presents vertical direct motor-driven agitators. Used for powerful and high-speed agitation in mixing, dissolution, dispersion, and maintenance processes in food processing, cosmetics, pharmaceutical, or chemical industries. Typically fitted to small volume tanks (up to 1,500 liters) for low-viscosity products.

Specification

• Vertical agitator with V-ring and retainer sealing
• Bearing support
• Propeller attached to shaft and shaft attached to half-shaft using Allen studbolts
• IEC B14 motor, 1500 rpm, IP 55, F-class insulation, max. power 0.75 kW

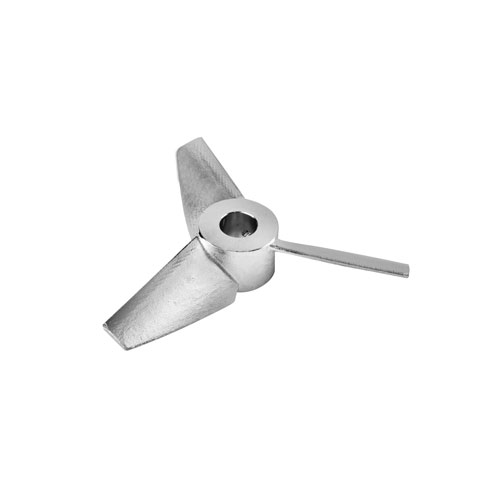

• Lineflux propeller (Type 18)

Materials

• Parts in contact with the product: AISI 316L
• V-ring and retainer: NBR
• Bearing support: Aluminum

Options

• FPM V-ring and retainer

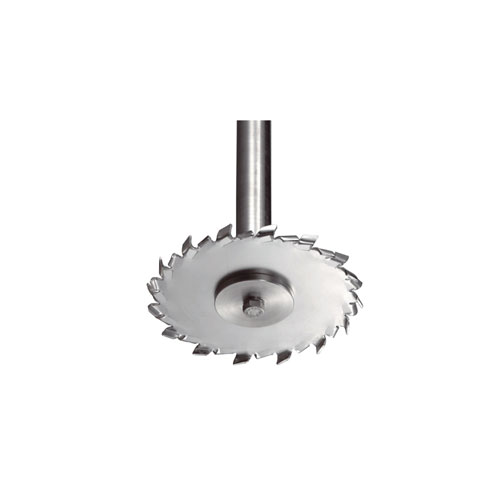

• Sawtooth propeller
• Welded propeller with Ra ≤ 0.5 μm surface finish
• Motor shroud
• Motors with other protections
• Motors: 950 rpm or 750 rpm
• Pneumatic drive
